Step1: Product
Amphenol Aerospace Operations MS27497E12B3P

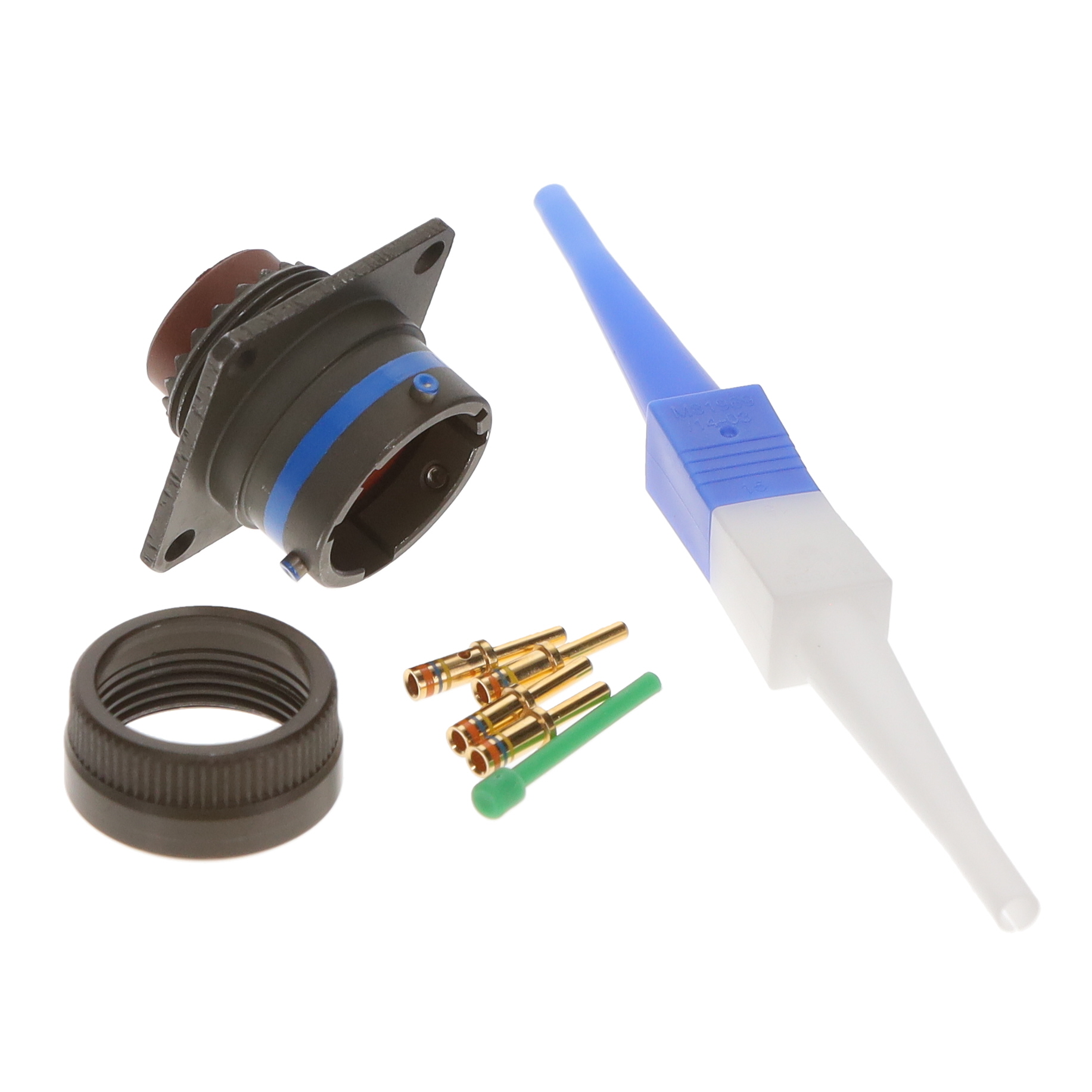

Image shown is a representation only
Manufacturer
Manufacturer No
MS27497E12B3P
Quantity
1
Availability
In Stock
Packaging
Bag
Description
RECEPT
Detailed Description
3 Position Circular Connector Receptacle, Male Pins Crimp
DataSheet
Mfr
Amphenol Aerospace Operations
Color
Olive Drab
Grade
Military
Series
JT
Packaging
Bag
Shielding
Unshielded
Orientation
N (Normal)
Part Status
Active
Termination
Crimp
Applications
Aviation, Marine, Military
Shell Finish
Olive Drab Cadmium over Nickel
Mounting Type
Panel Mount
Qualification
MIL-DTL-38999 Series II
Connector Type
Receptacle, Male Pins
Fastening Type
Bayonet Lock
Shell Material
Aluminum
Insert Material
Plastic
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Metal
Ingress Protection
Environment Resistant
Number of Positions
3
Shell Size - Insert
12-3
Operating Temperature
-65°C ~ 175°C
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | Amphenol Aerospace Operations |
| Color | Olive Drab |
| Grade | Military |
| Series | JT |
| Packaging | Bag |
| Shielding | Unshielded |
| Orientation | N (Normal) |
| Part Status | Active |
| Termination | Crimp |
| Applications | Aviation, Marine, Military |
| Shell Finish | Olive Drab Cadmium over Nickel |
| Mounting Type | Panel Mount |
| Qualification | MIL-DTL-38999 Series II |
| Connector Type | Receptacle, Male Pins |
| Fastening Type | Bayonet Lock |
| Shell Material | Aluminum |
| Insert Material | Plastic |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Metal |
| Ingress Protection | Environment Resistant |
| Number of Positions | 3 |
| Shell Size - Insert | 12-3 |
| Operating Temperature | -65°C ~ 175°C |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
