Allied Components International AT4547

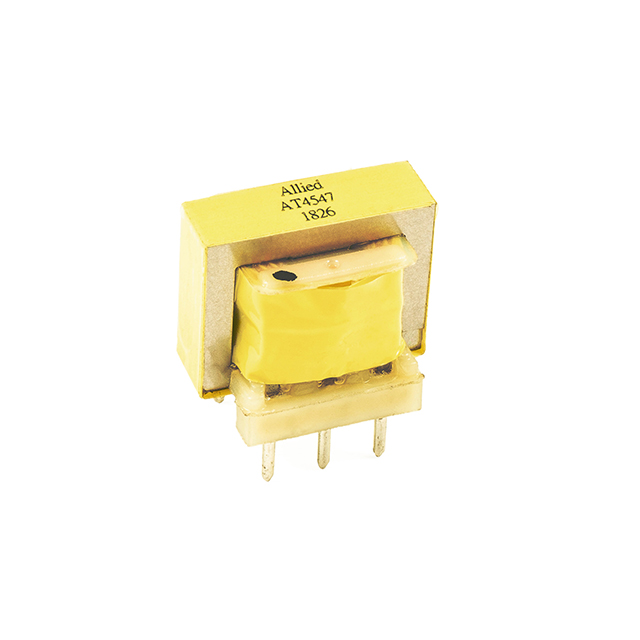

Image shown is a representation only
Manufacturer
Manufacturer No
AT4547
Packaging
Tray
Description
AUDIO XFMR 600 TH
Detailed Description
600 Impedance Primary Ohms Impedance Secondary Ohms 1.35:1:1 Audio Transformer Through Hole
DataSheet
Packaging
Tray
Part Status
Active
Return Loss
30dB Typ
Manufacturer
Allied Components International
Mounting Type
Through Hole
Insertion Loss
0.8dB Typ
Size / Dimension
0.812" L x 0.715" W (20.62mm x 18.16mm)
Transformer Type
Data/Voice
Termination Style
PC Pin
Frequency Response
±1dB
Voltage - Isolation
1500VAC
Height - Seated (Max)
0.740" (18.80mm)
Operating Temperature
0°C ~ 105°C
Impedance - Primary (Ohms)
600
DC Resistance (DCR) - Primary
56.5Ohm
DC Resistance (DCR) - Secondary
40.7Ohm, 40.7Ohm
Turns Ratio - Primary:Secondary
1.35:1:1
| Attribute | Value |
|---|---|
| Packaging | Tray |
| Part Status | Active |
| Return Loss | 30dB Typ |
| Manufacturer | Allied Components International |
| Mounting Type | Through Hole |
| Insertion Loss | 0.8dB Typ |
| Size / Dimension | 0.812" L x 0.715" W (20.62mm x 18.16mm) |
| Transformer Type | Data/Voice |
| Termination Style | PC Pin |
| Frequency Response | ±1dB |
| Voltage - Isolation | 1500VAC |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Operating Temperature | 0°C ~ 105°C |
| Impedance - Primary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 56.5Ohm |
| DC Resistance (DCR) - Secondary | 40.7Ohm, 40.7Ohm |
| Turns Ratio - Primary:Secondary | 1.35:1:1 |
