Step1: Product

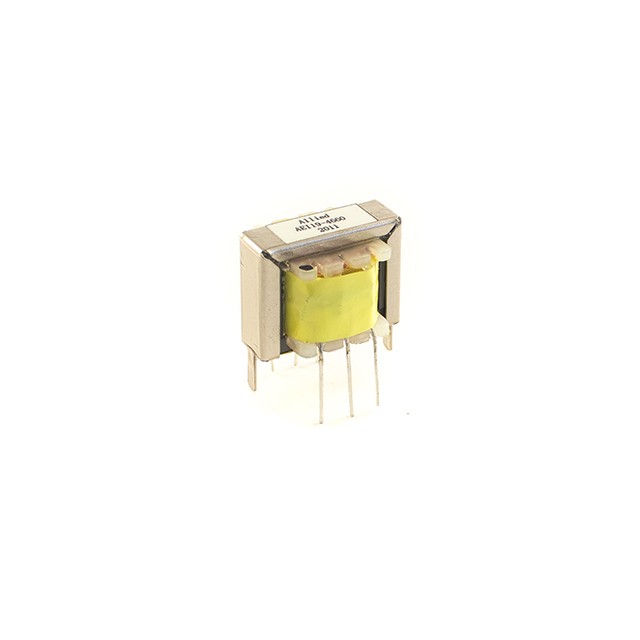

Allied Components International AEI19-4660
Image shown is a representation only
Manufacturer
Manufacturer No
AEI19-4660
Packaging
Tray
Description
AUDIO XFMR 10K / 10K TH
Detailed Description
10k Impedance Primary Ohms 10k Impedance Secondary Ohms 1:1 Audio Transformer 300Hz ~ 3.4kHz Through Hole
Datasheet
Packaging
Tray
Manufacturer
Allied Components International
Mounting Type
Through Hole
Frequency Range
300Hz ~ 3.4kHz
Size / Dimension
0.866" L x 0.630" W (22.00mm x 16.00mm)
Termination Style
PC Pin
Frequency Response
±0.3dB
Voltage - Isolation
100VAC
Height - Seated (Max)
0.669" (16.99mm)
Operating Temperature
-20°C ~ 80°C
Impedance - Primary (Ohms)
10k
Impedance - Secondary (Ohms)
10k
DC Resistance (DCR) - Primary
550Ohm
DC Resistance (DCR) - Secondary
500Ohm
Turns Ratio - Primary:Secondary
1:1
| Attribute | Value |
|---|---|
| Packaging | Tray |
| Manufacturer | Allied Components International |
| Mounting Type | Through Hole |
| Frequency Range | 300Hz ~ 3.4kHz |
| Size / Dimension | 0.866" L x 0.630" W (22.00mm x 16.00mm) |
| Termination Style | PC Pin |
| Frequency Response | ±0.3dB |
| Voltage - Isolation | 100VAC |
| Height - Seated (Max) | 0.669" (16.99mm) |
| Operating Temperature | -20°C ~ 80°C |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 10k |
| DC Resistance (DCR) - Primary | 550Ohm |
| DC Resistance (DCR) - Secondary | 500Ohm |
| Turns Ratio - Primary:Secondary | 1:1 |
