Step1: Product

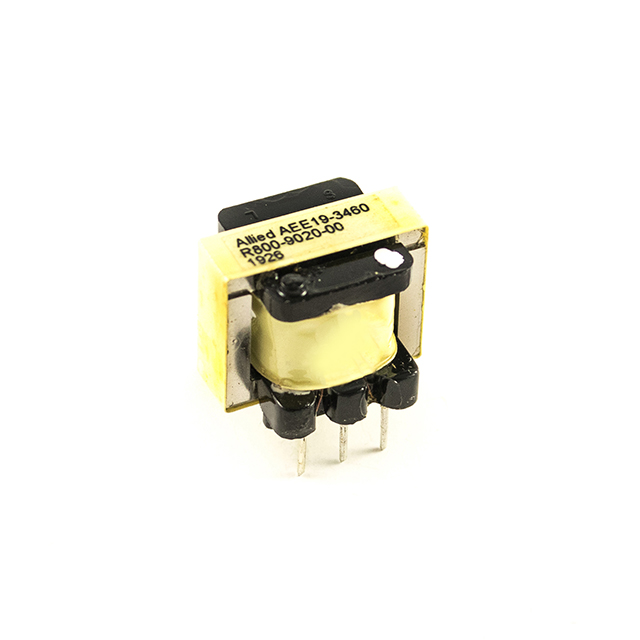

Allied Components International AEE19-3460
Image shown is a representation only
Manufacturer
Manufacturer No
AEE19-3460
Packaging
Tray
Description
AUDIO XFMR 10K / 10K TH
Detailed Description
10k Impedance Primary Ohms 10k Impedance Secondary Ohms 1:1 Audio Transformer Through Hole
Datasheet
Packaging
Tray
Manufacturer
Allied Components International
Mounting Type
Through Hole
Size / Dimension
0.827" L x 0.787" W (21.00mm x 20.00mm)
Transformer Type
Impedance Matching
Termination Style
PC Pin
Voltage - Isolation
1000V
Height - Seated (Max)
0.748" (19.00mm)
Operating Temperature
-20°C ~ 85°C
Impedance - Primary (Ohms)
10k
Impedance - Secondary (Ohms)
10k
DC Resistance (DCR) - Primary
820Ohm
DC Resistance (DCR) - Secondary
1.08kOhm
Turns Ratio - Primary:Secondary
1:1
| Attribute | Value |
|---|---|
| Packaging | Tray |
| Manufacturer | Allied Components International |
| Mounting Type | Through Hole |
| Size / Dimension | 0.827" L x 0.787" W (21.00mm x 20.00mm) |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Voltage - Isolation | 1000V |
| Height - Seated (Max) | 0.748" (19.00mm) |
| Operating Temperature | -20°C ~ 85°C |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 10k |
| DC Resistance (DCR) - Primary | 820Ohm |
| DC Resistance (DCR) - Secondary | 1.08kOhm |
| Turns Ratio - Primary:Secondary | 1:1 |
