Step1: Product

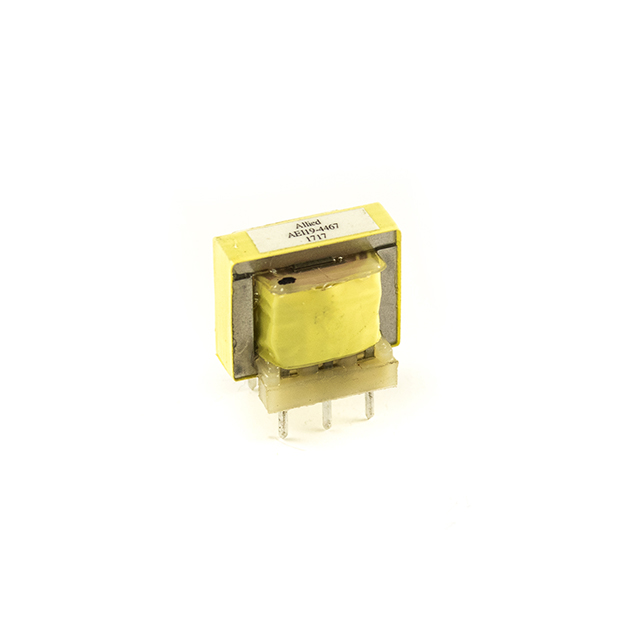

Allied Components International AEI19-4467
Image shown is a representation only
Manufacturer
Manufacturer No
AEI19-4467
Packaging
Tray
Description
AUDIO XFMR 600CT / 600CT TH
Detailed Description
600CT Impedance Primary Ohms 600CT Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 15kHz Through Hole
DataSheet
Packaging
Tray
Part Status
Active
Manufacturer
Allied Components International
Mounting Type
Through Hole
Insertion Loss
1.5dB @ 1kHz Max
Frequency Range
200Hz ~ 15kHz
Size / Dimension
0.812" L x 0.700" W (20.62mm x 17.78mm)
Transformer Type
Impedance Matching
Termination Style
PC Pin
Frequency Response
±2dB
Voltage - Isolation
1500Vrms @ 1 Second
Height - Seated (Max)
0.740" (18.80mm)
Operating Temperature
0°C ~ 105°C
Impedance - Primary (Ohms)
600CT
Impedance - Secondary (Ohms)
600CT
DC Resistance (DCR) - Primary
44Ohm
DC Resistance (DCR) - Secondary
58Ohm
Turns Ratio - Primary:Secondary
1:1
| Attribute | Value |
|---|---|
| Packaging | Tray |
| Part Status | Active |
| Manufacturer | Allied Components International |
| Mounting Type | Through Hole |
| Insertion Loss | 1.5dB @ 1kHz Max |
| Frequency Range | 200Hz ~ 15kHz |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Frequency Response | ±2dB |
| Voltage - Isolation | 1500Vrms @ 1 Second |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Operating Temperature | 0°C ~ 105°C |
| Impedance - Primary (Ohms) | 600CT |
| Impedance - Secondary (Ohms) | 600CT |
| DC Resistance (DCR) - Primary | 44Ohm |
| DC Resistance (DCR) - Secondary | 58Ohm |
| Turns Ratio - Primary:Secondary | 1:1 |
