Step1: Product

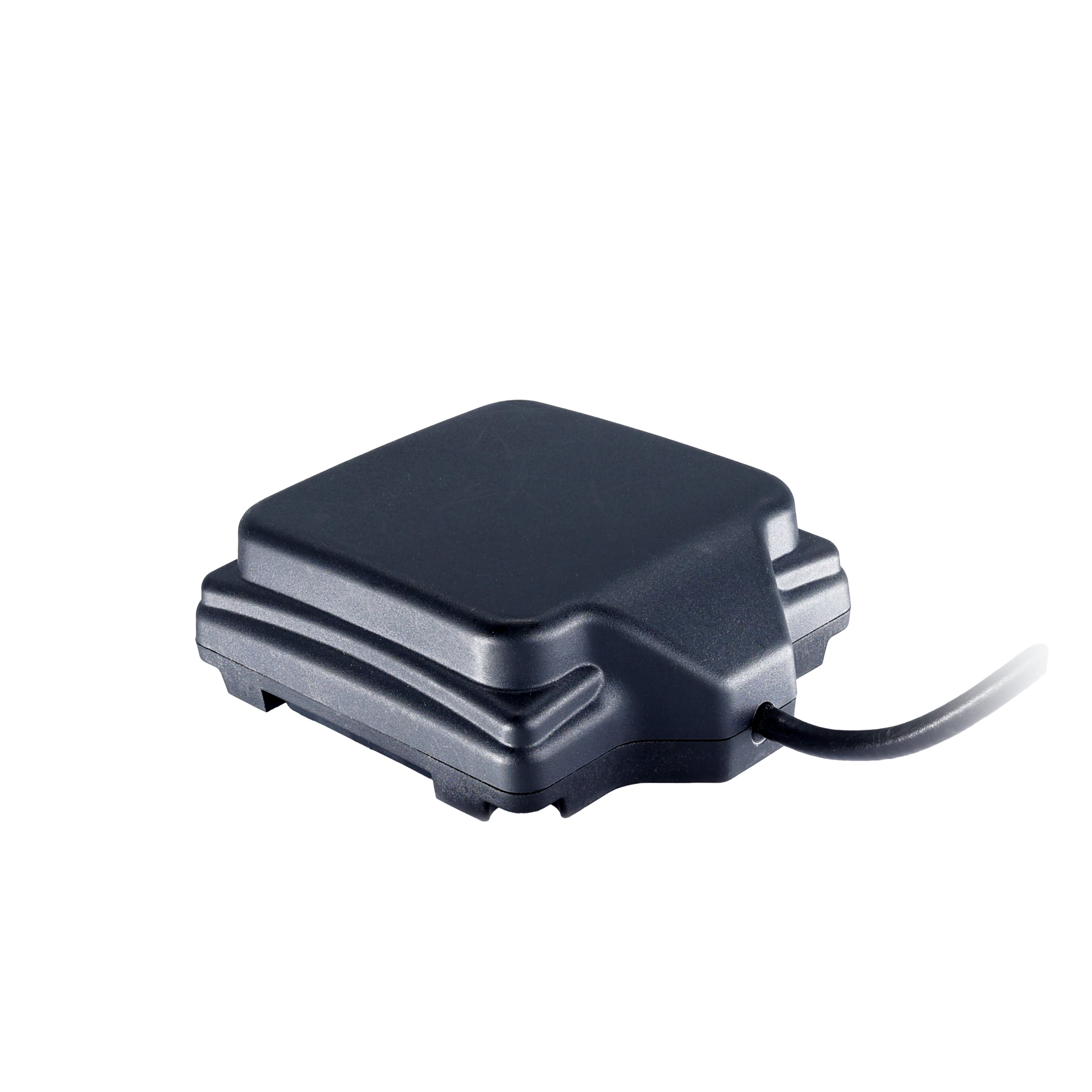

Yokowo Manufacturing of America, LLC. YOZ-52728ZZ01-YM
Image shown is a representation only
Manufacturer
Manufacturer No
YOZ-52728ZZ01-YM
Packaging
Bulk
Description
High Precision GNSS Antenna(L1,
Detailed Description
RF ANTENNA Beidou, GLONASS, Galileo, GPS, QZSS, L-band Omni-Directional SMA Male (1) Adhesive
DataSheet
Gain
27.9dBic, 27.3dBic, 26.5dBic, 25.7dBic, 27.2dBic, 29.1dBic, 30.6dBic, 30.2dBic, 28.0dBic, 25.8dBic
VSWR
1.0, 1.1, 1.1, 1.1, 1.1, 1.1, 1.1, 1.0, 1.1, 1.1
Grade
Automotive
Series
High Precision GNSS Antenna
Features
Cable - 5m
Packaging
Bulk
Part Status
Active
Return Loss
-36.4dB, 32.2-dB, -30.8dB, -27.9dB, -27.7dB, -32.8dB, -28dB, -25.2dB, -35.4dB, -32.2dB
Termination
SMA Male (1)
Antenna Type
Omni-Directional
Applications
Beidou, GLONASS, Galileo, GPS, QZSS, L-band
Height (Max)
2.220" (56.40mm)
Manufacturer
Yokowo Manufacturing of America, LLC.
Mounting Type
Adhesive
Frequency Group
L Band (1GHz ~ 2GHz)
Frequency Range
1.525GHz～1.606GHz, 1.166GHz～1.284GHz
Number of Bands
10
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.539GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.176GHz, 1.207GHz, 1.227GHz, 1.245GHz, 1.268GHz, 1.278GHz
| Attribute | Value |
|---|---|
| Gain | 27.9dBic, 27.3dBic, 26.5dBic, 25.7dBic, 27.2dBic, 29.1dBic, 30.6dBic, 30.2dBic, 28.0dBic, 25.8dBic |
| VSWR | 1.0, 1.1, 1.1, 1.1, 1.1, 1.1, 1.1, 1.0, 1.1, 1.1 |
| Grade | Automotive |
| Series | High Precision GNSS Antenna |
| Features | Cable - 5m |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -36.4dB, 32.2-dB, -30.8dB, -27.9dB, -27.7dB, -32.8dB, -28dB, -25.2dB, -35.4dB, -32.2dB |
| Termination | SMA Male (1) |
| Antenna Type | Omni-Directional |
| Applications | Beidou, GLONASS, Galileo, GPS, QZSS, L-band |
| Height (Max) | 2.220" (56.40mm) |
| Manufacturer | Yokowo Manufacturing of America, LLC. |
| Mounting Type | Adhesive |
| Frequency Group | L Band (1GHz ~ 2GHz) |
| Frequency Range | 1.525GHz～1.606GHz, 1.166GHz～1.284GHz |
| Number of Bands | 10 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.539GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.176GHz, 1.207GHz, 1.227GHz, 1.245GHz, 1.268GHz, 1.278GHz |
