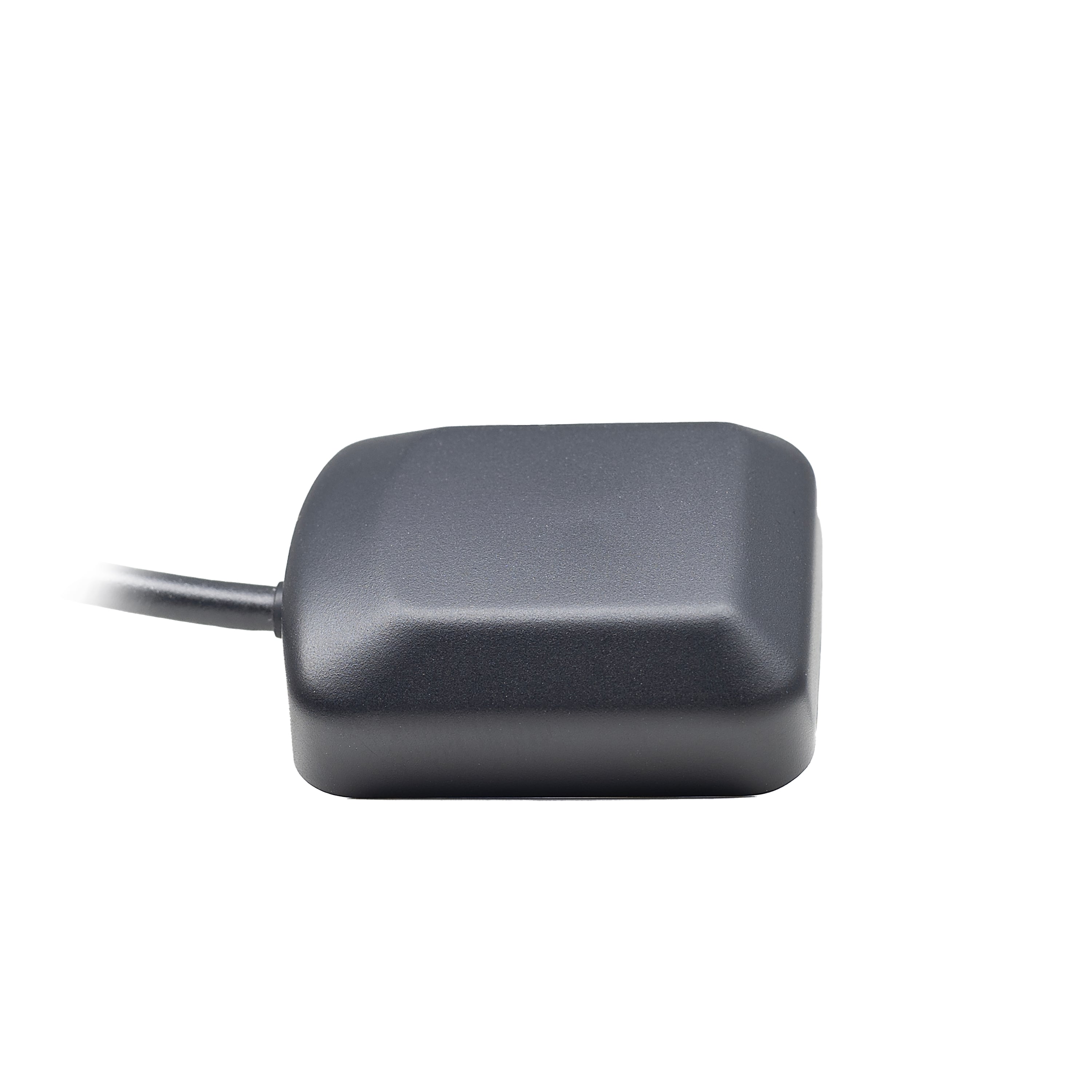

Yokowo Manufacturing of America, LLC. YOP-5270-ZZ01-YM
Image shown is a representation only
Manufacturer
Manufacturer No
YOP-5270-ZZ01-YM
Packaging
Bulk
Description
GNSS Antenna L1 (Magnet)
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GPS, QZSS Omni-Directional SMA Male (1) Magnetic
DataSheet
Gain
23.7dBi, 23.8dBi, 24.2dBi
VSWR
1.3, 1.4, 1.4
Grade
Automotive
Series
*
Features
Cable - 5m
Packaging
Bulk
Part Status
Active
Return Loss
-15.8dB, -15.8dB, -17.7dB
Termination
SMA Male (1)
Antenna Type
Omni-Directional
Applications
BeiDou, Galileo, GLONASS, GPS, QZSS
Height (Max)
0.460" (11.70mm)
Manufacturer
Yokowo Manufacturing of America, LLC.
Mounting Type
Magnetic
Frequency Group
L Band (1GHz ~ 2GHz)
Frequency Range
1.559GHz ~ 1.606GHz
Number of Bands
3
RF Family/Standard
Navigation
Frequency (Center/Band)
1.561GHz, 1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 23.7dBi, 23.8dBi, 24.2dBi |
| VSWR | 1.3, 1.4, 1.4 |
| Grade | Automotive |
| Series | * |
| Features | Cable - 5m |
| Packaging | Bulk |
| Part Status | Active |
| Return Loss | -15.8dB, -15.8dB, -17.7dB |
| Termination | SMA Male (1) |
| Antenna Type | Omni-Directional |
| Applications | BeiDou, Galileo, GLONASS, GPS, QZSS |
| Height (Max) | 0.460" (11.70mm) |
| Manufacturer | Yokowo Manufacturing of America, LLC. |
| Mounting Type | Magnetic |
| Frequency Group | L Band (1GHz ~ 2GHz) |
| Frequency Range | 1.559GHz ~ 1.606GHz |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz |
