XINGLIGHT XL-257UYC-L

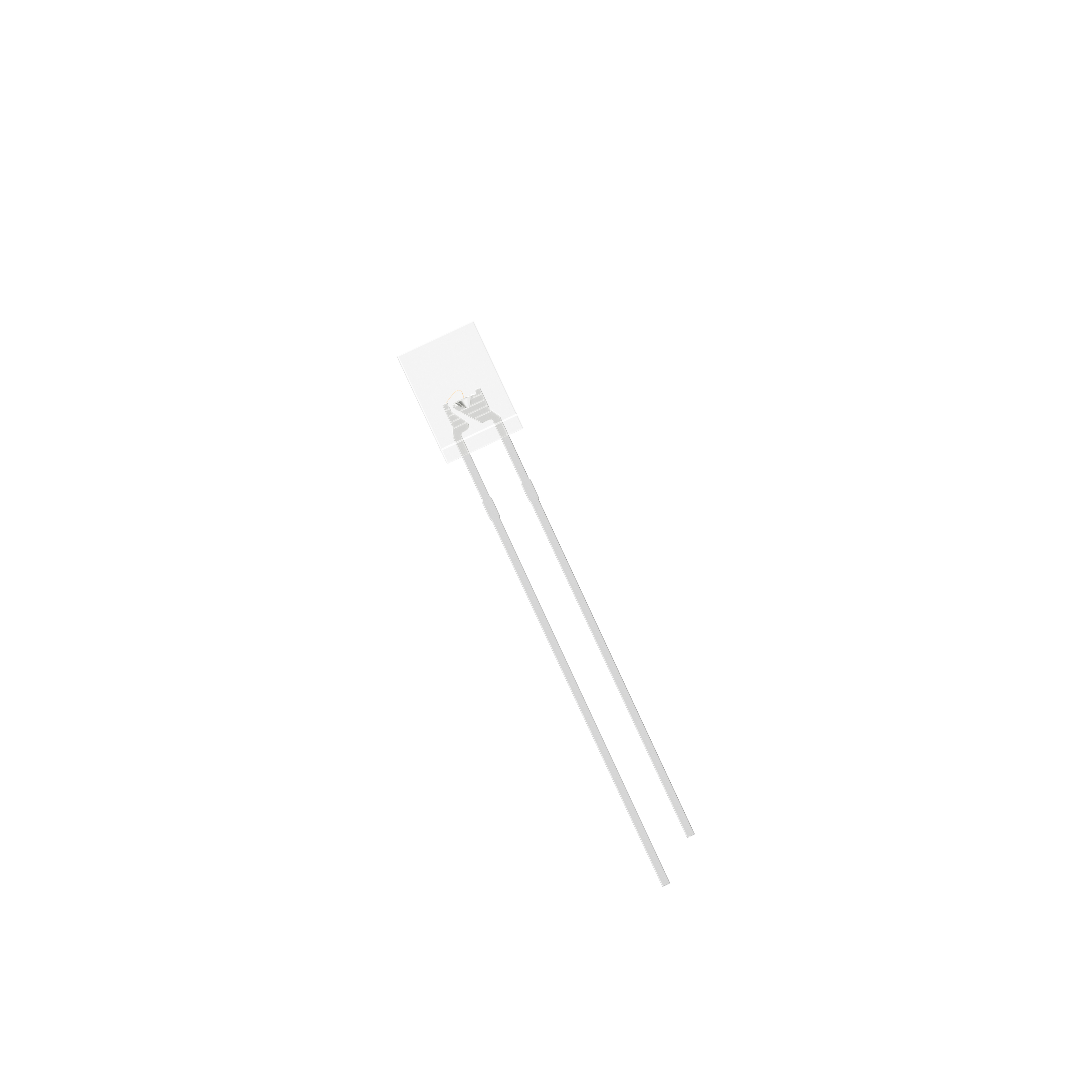

Image shown is a representation only
Manufacturer
Manufacturer No
XL-257UYC-L
Package
Radial
Packaging
Bag
Description
DIP LED YELLOW 5MM SQUARE T/H
Detailed Description
Yellow 590nm LED Indication - Discrete 2.2V Radial
DataSheet
Mfr
XINGLIGHT
Color
Yellow
Series
257
Lens Size
5.00mm x 2.50mm
Packaging
Bag
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
7.10mm
Configuration
Independent
Mounting Type
Through Hole
Viewing Angle
35°
Current - Test
20mA
Package / Case
Radial
Size / Dimension
5.00mm L x 2.00mm W
Lens Transparency
Diffused
Wavelength - Peak
588nm
Millicandela Rating
150mcd
Wavelength - Dominant
590nm
Supplier Device Package
Rectangular
Voltage - Forward (Vf) (Typ)
2.2V
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Yellow |
| Series | 257 |
| Lens Size | 5.00mm x 2.50mm |
| Packaging | Bag |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 7.10mm |
| Configuration | Independent |
| Mounting Type | Through Hole |
| Viewing Angle | 35° |
| Current - Test | 20mA |
| Package / Case | Radial |
| Size / Dimension | 5.00mm L x 2.00mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 588nm |
| Millicandela Rating | 150mcd |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | Rectangular |
| Voltage - Forward (Vf) (Typ) | 2.2V |
