Step1: Product
XINGLIGHT XL-2520UGC/TR10

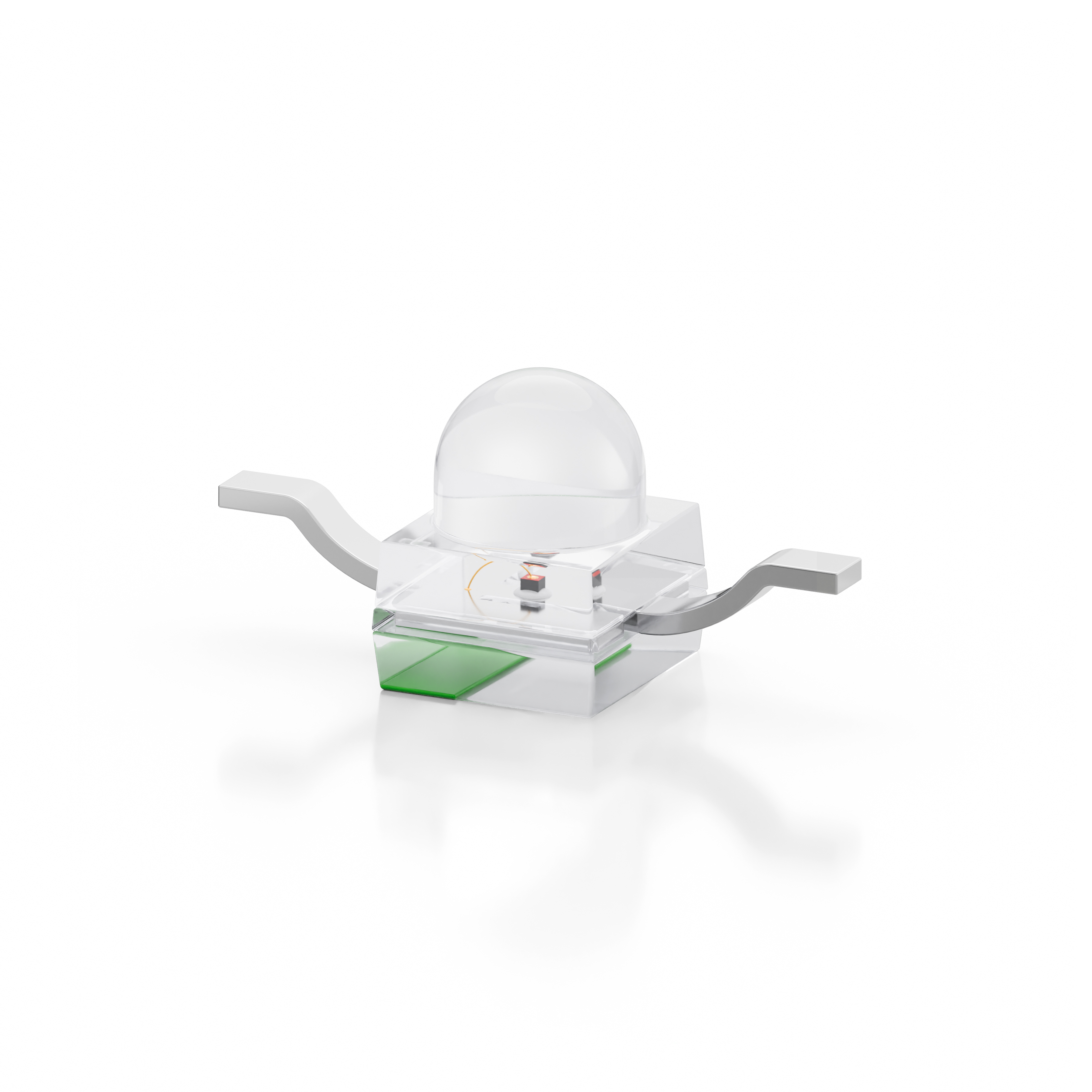

Image shown is a representation only
Manufacturer
Manufacturer No
XL-2520UGC/TR10
Package
2-SMD, Z-Bend
Packaging
Tape & Reel (TR)
Description
LED 2520 GREEN SMD,2.3X2.1MM
Detailed Description
Green 520nm LED Indication - Discrete 3V 2-SMD, Z-Bend
DataSheet
Mfr
XINGLIGHT
Color
Green
Lens Size
1.80mm Dia
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Round with Domed Top
Part Status
Active
Height (Max)
2.75mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
20°
Current - Test
20mA
Package / Case
2-SMD, Z-Bend
Size / Dimension
2.10mm L x 2.30mm W
Lens Transparency
Diffused
Wavelength - Peak
520nm
Millicandela Rating
1250mcd
Wavelength - Dominant
520nm
Voltage - Forward (Vf) (Typ)
3V
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Green |
| Lens Size | 1.80mm Dia |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Part Status | Active |
| Height (Max) | 2.75mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 20° |
| Current - Test | 20mA |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension | 2.10mm L x 2.30mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 520nm |
| Millicandela Rating | 1250mcd |
| Wavelength - Dominant | 520nm |
| Voltage - Forward (Vf) (Typ) | 3V |
