Step1: Product

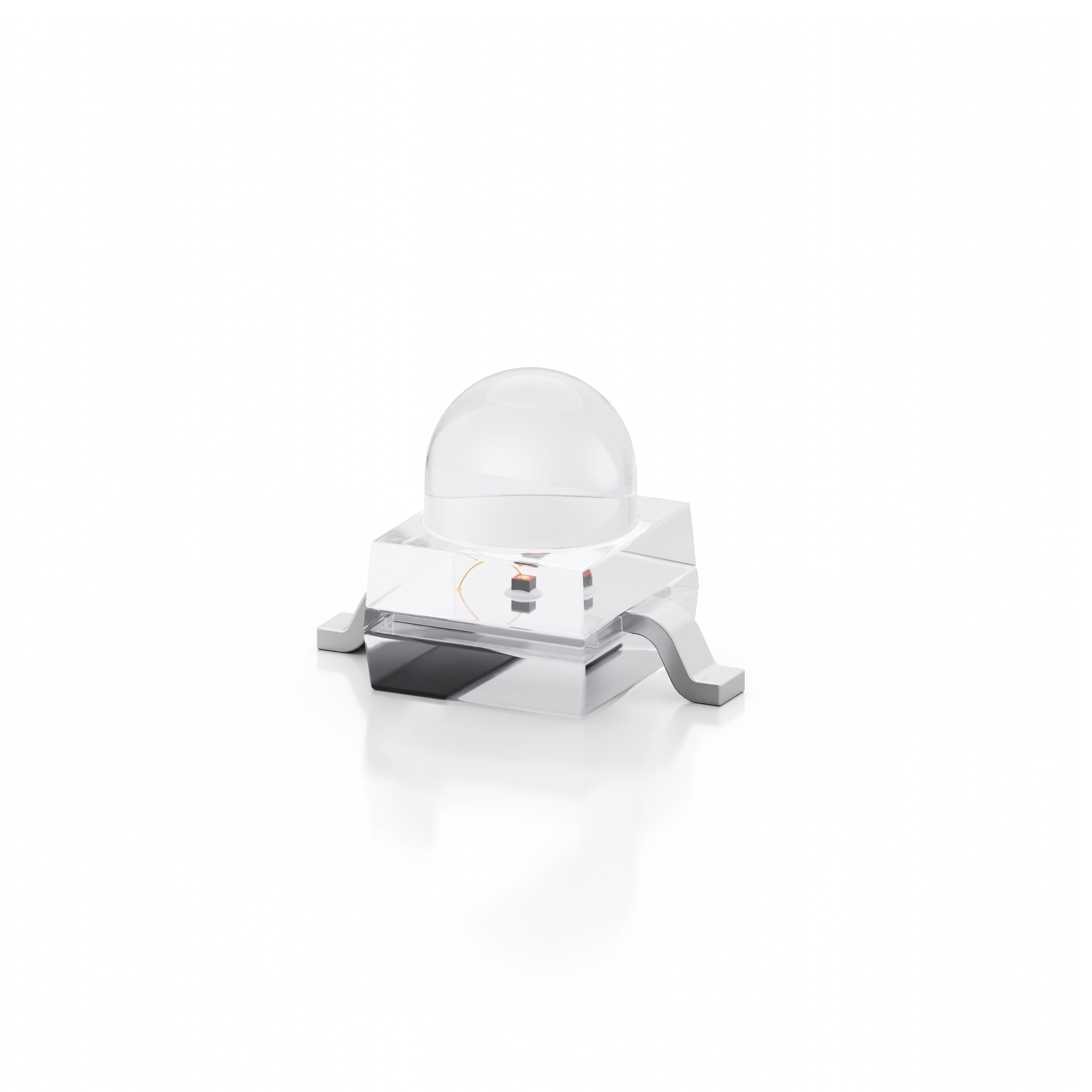

XINGLIGHT XL-2520UOC/TR7
Image shown is a representation only
Manufacturer
Manufacturer No
XL-2520UOC/TR7
Package
2-SMD, Gull Wing
Packaging
Tape & Reel (TR)
Description
LED RED 2520 SMD,2.3X2.1MM
Detailed Description
Orange 605nm LED Indication - Discrete 2.1V 2-SMD, Gull Wing
DataSheet
Mfr
XINGLIGHT
Color
Orange
Lens Size
1.80mm Dia
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Round with Domed Top
Part Status
Active
Height (Max)
2.85mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
20°
Current - Test
20mA
Package / Case
2-SMD, Gull Wing
Size / Dimension
2.10mm L x 2.30mm W
Lens Transparency
Diffused
Wavelength - Peak
605nm
Millicandela Rating
1500mcd
Wavelength - Dominant
605nm
Voltage - Forward (Vf) (Typ)
2.1V
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Orange |
| Lens Size | 1.80mm Dia |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Part Status | Active |
| Height (Max) | 2.85mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 20° |
| Current - Test | 20mA |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension | 2.10mm L x 2.30mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 605nm |
| Millicandela Rating | 1500mcd |
| Wavelength - Dominant | 605nm |
| Voltage - Forward (Vf) (Typ) | 2.1V |
