Step1: Product

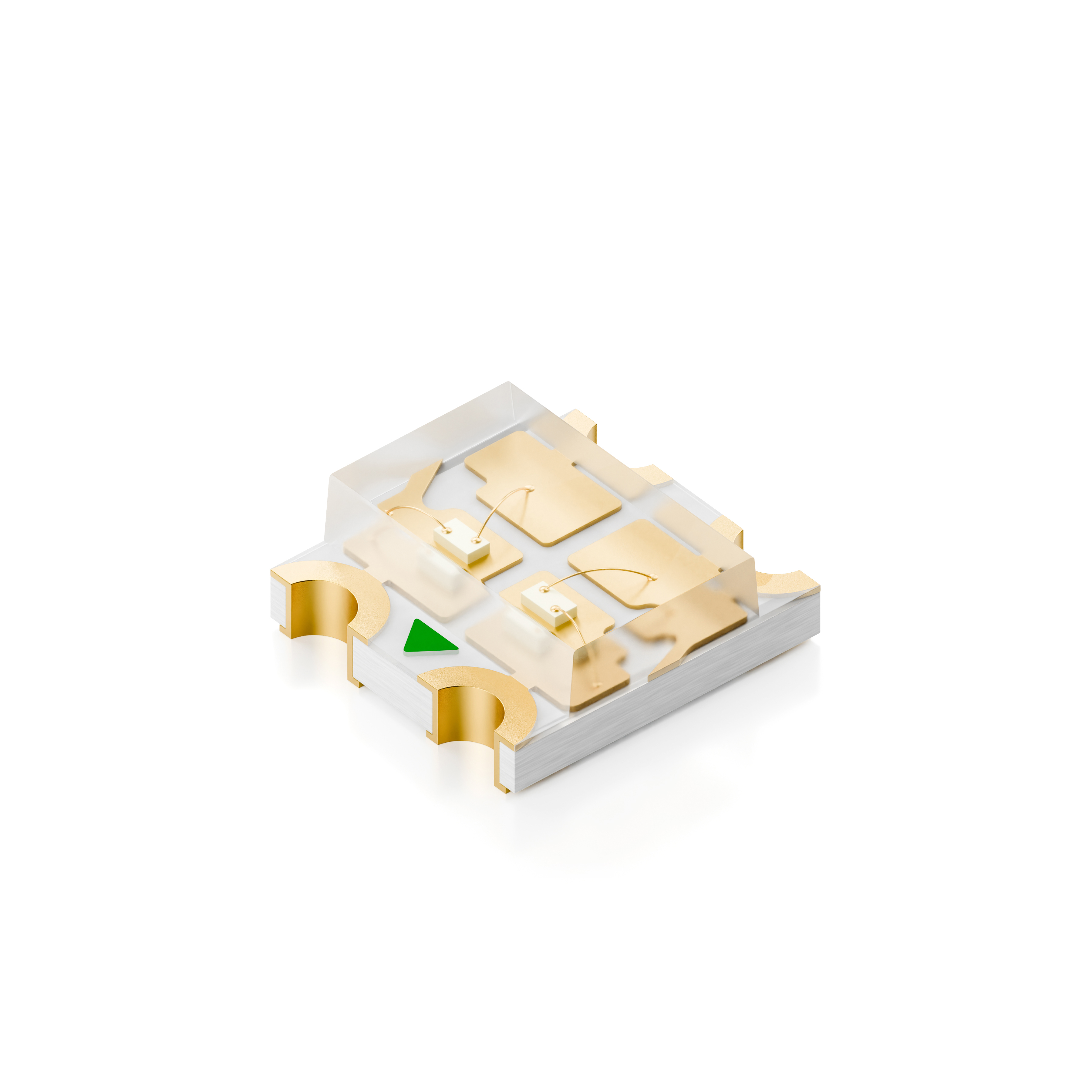

XINGLIGHT XL-1615UBUGC
Image shown is a representation only
Manufacturer
Manufacturer No
XL-1615UBUGC
Package
0605 (1613 Metric)
Packaging
Tape & Reel (TR)
Description
CHIP LED 0606 BLUE,GREEN SMD
Detailed Description
Blue, Green 468nm Blue, 520nm Green LED Indication - Discrete 3.1V Blue, 3.1V Green 0605 (1613 Metric)
DataSheet
Mfr
XINGLIGHT
Color
Blue, Green
Series
1615
Lens Size
1.50mm x 1.10mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.85mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
130°
Current - Test
20mA Blue, 20mA Green
Package / Case
0605 (1613 Metric)
Size / Dimension
1.60mm L x 1.50mm W
Lens Transparency
Clear
Wavelength - Peak
468nm Blue, 520nm Green
Millicandela Rating
115mcd Blue, 500mcd Green
Wavelength - Dominant
468nm Blue, 520nm Green
Voltage - Forward (Vf) (Typ)
3.1V Blue, 3.1V Green
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Blue, Green |
| Series | 1615 |
| Lens Size | 1.50mm x 1.10mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.85mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 130° |
| Current - Test | 20mA Blue, 20mA Green |
| Package / Case | 0605 (1613 Metric) |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 468nm Blue, 520nm Green |
| Millicandela Rating | 115mcd Blue, 500mcd Green |
| Wavelength - Dominant | 468nm Blue, 520nm Green |
| Voltage - Forward (Vf) (Typ) | 3.1V Blue, 3.1V Green |
