Step1: Product

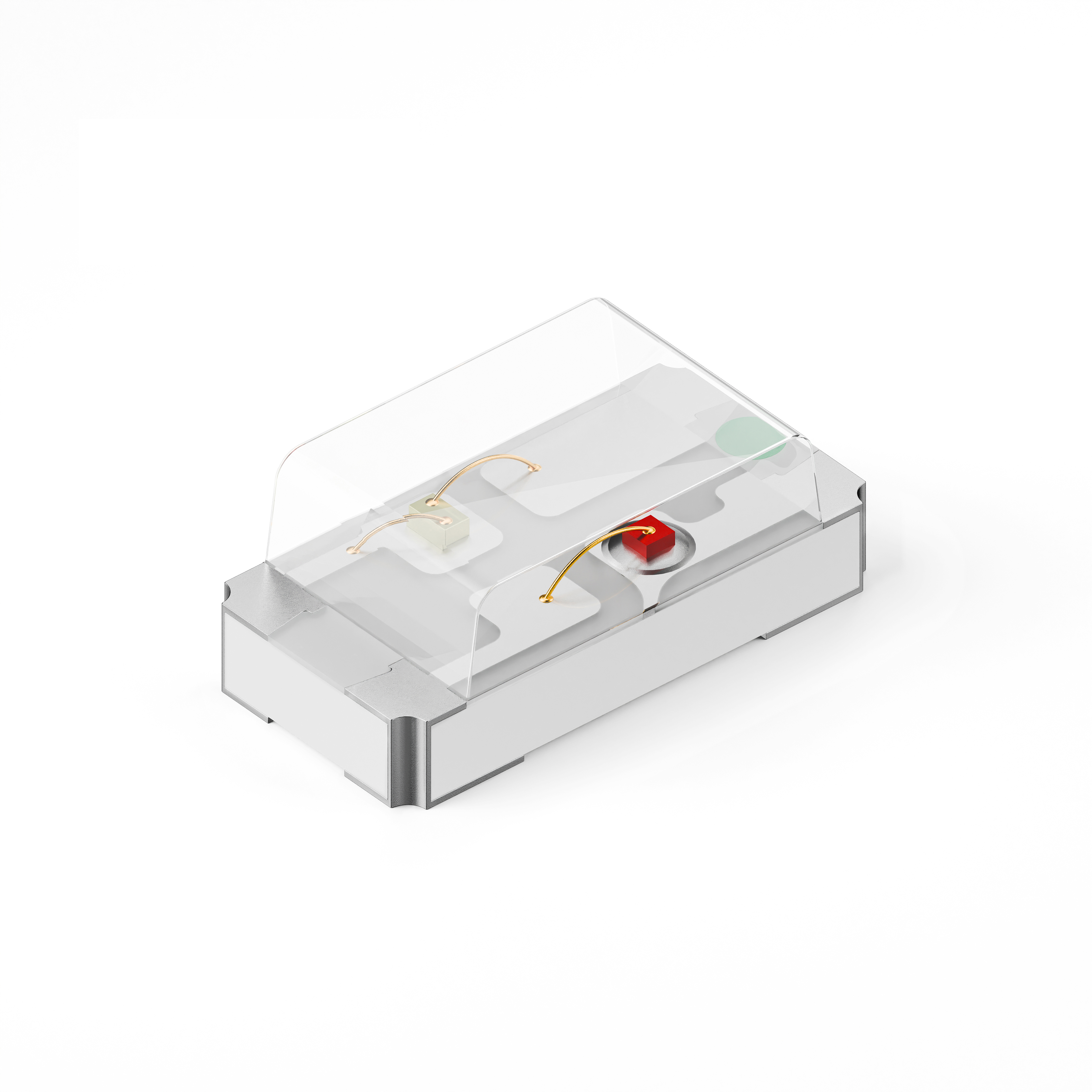

XINGLIGHT XL-1608SURUGC
Image shown is a representation only
Manufacturer
Manufacturer No
XL-1608SURUGC
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR)
Description
CHIP LED RED,GREEN 1200603SMD
Detailed Description
Green, Red 525nm Green, 625nm Red LED Indication - Discrete 2.6V Green, 2.1V Red 0603 (1608 Metric)
DataSheet
Mfr
XINGLIGHT
Color
Green, Red
Series
0603
Lens Size
1.17mm x 0.80mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.85mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Green, 20mA Red
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.85mm W
Lens Transparency
Clear
Wavelength - Peak
525nm Green, 630nm Red
Millicandela Rating
550mcd Green, 150mcd Red
Wavelength - Dominant
525nm Green, 625nm Red
Voltage - Forward (Vf) (Typ)
2.6V Green, 2.1V Red
| Attribute | Value |
|---|---|
| Mfr | XINGLIGHT |
| Color | Green, Red |
| Series | 0603 |
| Lens Size | 1.17mm x 0.80mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.85mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Green, 20mA Red |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.85mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 525nm Green, 630nm Red |
| Millicandela Rating | 550mcd Green, 150mcd Red |
| Wavelength - Dominant | 525nm Green, 625nm Red |
| Voltage - Forward (Vf) (Typ) | 2.6V Green, 2.1V Red |
