Step1: Product
Weidmüller 1981030000

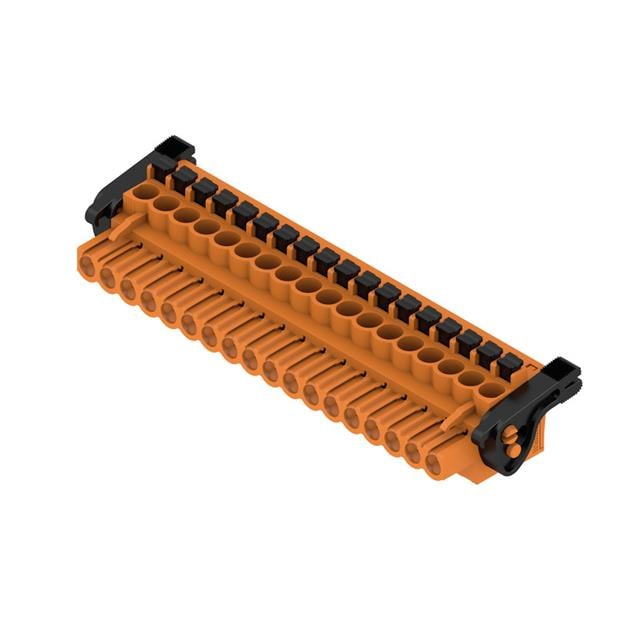

Image shown is a representation only
Manufacturer
Manufacturer No
1981030000
Packaging
Box
Description
TERM BLOCK PLUG 18POS 5MM
Detailed Description
18 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
Datasheet
Type
Plug, Female Sockets
Color
Orange
Pitch
0.197" (5.00mm)
Series
Omnimate BL
Features
Ejector Latches, Retention Latches (Wire Side)
Packaging
Box
Current - UL
18.5 A
Manufacturer
Weidmüller
Voltage - UL
300 V
Current - IEC
24A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
400 V
Plug Wire Entry
90°
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Number of Levels
1
Insulation Height
0.819" (20.80mm)
Termination Style
Screwless - Leg Spring, Push-In Spring
Wire Strip Length
10mm
Ingress Protection
IP20
Number of Positions
18
Positions Per Level
18
Contact Mating Finish
Tin
Operating Temperature
-50°C ~ 100°C
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm²
0.2-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Orange |
| Pitch | 0.197" (5.00mm) |
| Series | Omnimate BL |
| Features | Ejector Latches, Retention Latches (Wire Side) |
| Packaging | Box |
| Current - UL | 18.5 A |
| Manufacturer | Weidmüller |
| Voltage - UL | 300 V |
| Current - IEC | 24A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 400 V |
| Plug Wire Entry | 90° |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Levels | 1 |
| Insulation Height | 0.819" (20.80mm) |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Wire Strip Length | 10mm |
| Ingress Protection | IP20 |
| Number of Positions | 18 |
| Positions Per Level | 18 |
| Contact Mating Finish | Tin |
| Operating Temperature | -50°C ~ 100°C |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
