Step1: Product

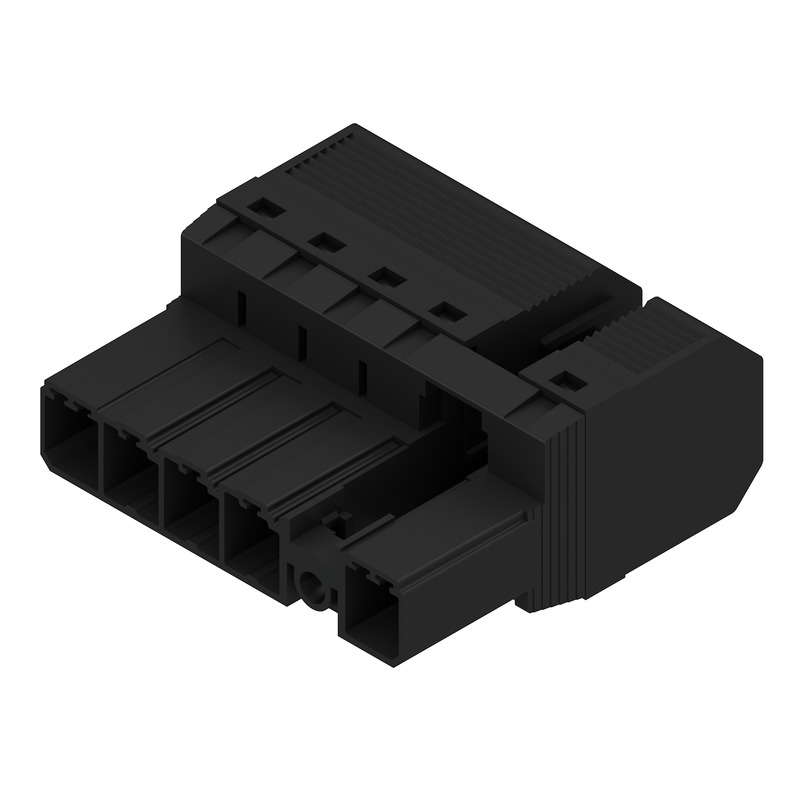

Weidmüller 1430020000
Image shown is a representation only
Manufacturer
Manufacturer No
1430020000
Packaging
Box
Description
TERM BLOCK PLUG 5POS 7.62MM
Detailed Description
5 Position Terminal Block Plug, Male Pins 0.300" (7.62mm) 180° Free Hanging (In-Line)
DataSheet
Type
Plug, Male Pins
Color
Black
Pitch
0.300" (7.62mm)
Series
Omnimate SV
Features
Latch Holder
Packaging
Box
Part Status
Active
Current - UL
39 A
Manufacturer
Weidmüller
Voltage - UL
300 V
Current - IEC
57A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
1 kV
Plug Wire Entry
180°
Contact Material
Copper Alloy
Housing Material
Polyamide (PA), Nylon, Glass Filled
Number of Levels
1
Insulation Height
0.811" (20.60mm)
Termination Style
Screwless - Spring Cage, Tension Clamp
Wire Strip Length
12mm
Ingress Protection
IP20
Number of Positions
5
Positions Per Level
5
Contact Mating Finish
Tin
Operating Temperature
-50°C ~ 125°C
Wire Gauge or Range - AWG
10-24 AWG
Wire Gauge or Range - mm²
0.5-10mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Male Pins |
| Color | Black |
| Pitch | 0.300" (7.62mm) |
| Series | Omnimate SV |
| Features | Latch Holder |
| Packaging | Box |
| Part Status | Active |
| Current - UL | 39 A |
| Manufacturer | Weidmüller |
| Voltage - UL | 300 V |
| Current - IEC | 57A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 1 kV |
| Plug Wire Entry | 180° |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Levels | 1 |
| Insulation Height | 0.811" (20.60mm) |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Wire Strip Length | 12mm |
| Ingress Protection | IP20 |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Contact Mating Finish | Tin |
| Operating Temperature | -50°C ~ 125°C |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.5-10mm² |
| Material Flammability Rating | UL94 V-0 |
