Step1: Product
Weidmüller 1932030000

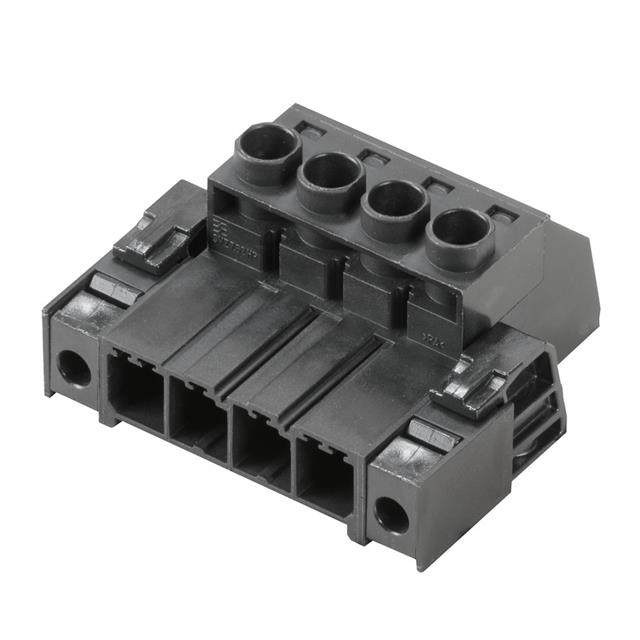

Image shown is a representation only
Manufacturer
Manufacturer No
1932030000
Packaging
Bulk
Description
TERM BLOCK PLUG 9POS 7.62MM
Detailed Description
9 Position Terminal Block Plug, Male Pins 0.300" (7.62mm) 180° Free Hanging (In-Line)
Datasheet
Type
Plug, Male Pins
Color
Black
Pitch
0.300" (7.62mm)
Series
Omnimate SV
Features
Mating Flange
Packaging
Bulk
Screw Size
M3
Current - UL
42 A
Manufacturer
Weidmüller
Voltage - UL
600 V
Current - IEC
57A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
1 kV
Torque - Screw
0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry
180°
Contact Material
Copper Alloy
Housing Material
Polyamide (PA), Nylon, Glass Filled
Number of Levels
1
Insulation Height
0.909" (23.09mm)
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Wire Strip Length
12mm
Ingress Protection
IP20
Number of Positions
9
Positions Per Level
9
Contact Mating Finish
Tin
Operating Temperature
-50°C ~ 125°C
Wire Gauge or Range - AWG
8-24 AWG
Wire Gauge or Range - mm²
0.2-10mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Male Pins |
| Color | Black |
| Pitch | 0.300" (7.62mm) |
| Series | Omnimate SV |
| Features | Mating Flange |
| Packaging | Bulk |
| Screw Size | M3 |
| Current - UL | 42 A |
| Manufacturer | Weidmüller |
| Voltage - UL | 600 V |
| Current - IEC | 57A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 1 kV |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Plug Wire Entry | 180° |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Levels | 1 |
| Insulation Height | 0.909" (23.09mm) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Wire Strip Length | 12mm |
| Ingress Protection | IP20 |
| Number of Positions | 9 |
| Positions Per Level | 9 |
| Contact Mating Finish | Tin |
| Operating Temperature | -50°C ~ 125°C |
| Wire Gauge or Range - AWG | 8-24 AWG |
| Wire Gauge or Range - mm² | 0.2-10mm² |
| Material Flammability Rating | UL94 V-0 |
