Step1: Product

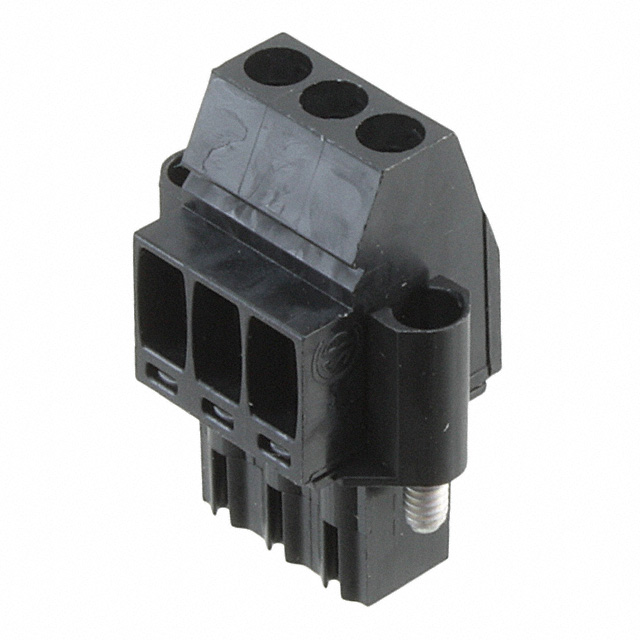

Weidmüller 1639250000
Image shown is a representation only
Manufacturer
Manufacturer No
1639250000
Packaging
Bulk
Description
TERM BLOCK PLUG 3POS 3.50MM
Detailed Description
3 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 90° Free Hanging (In-Line)
DataSheet
Type
Plug, Female Sockets
Color
Black
Pitch
0.138" (3.50mm)
Series
Omnimate BL
Features
Mating Flange
Packaging
Bulk
Screw Size
M2
Part Status
Active
Current - UL
8 A
Manufacturer
Weidmüller
Voltage - UL
300 V
Current - IEC
12A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
320 V
Torque - Screw
0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry
90°
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Number of Levels
1
Insulation Height
0.884" (22.45mm)
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Wire Strip Length
6mm
Ingress Protection
IP20
Number of Positions
3
Positions Per Level
3
Contact Mating Finish
Tin
Operating Temperature
-50°C ~ 100°C
Wire Gauge or Range - AWG
14-28 AWG
Wire Gauge or Range - mm²
0.2-1.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Black |
| Pitch | 0.138" (3.50mm) |
| Series | Omnimate BL |
| Features | Mating Flange |
| Packaging | Bulk |
| Screw Size | M2 |
| Part Status | Active |
| Current - UL | 8 A |
| Manufacturer | Weidmüller |
| Voltage - UL | 300 V |
| Current - IEC | 12A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 320 V |
| Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) |
| Plug Wire Entry | 90° |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Levels | 1 |
| Insulation Height | 0.884" (22.45mm) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Wire Strip Length | 6mm |
| Ingress Protection | IP20 |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Contact Mating Finish | Tin |
| Operating Temperature | -50°C ~ 100°C |
| Wire Gauge or Range - AWG | 14-28 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
