Step1: Product
Weidmüller 1638030000

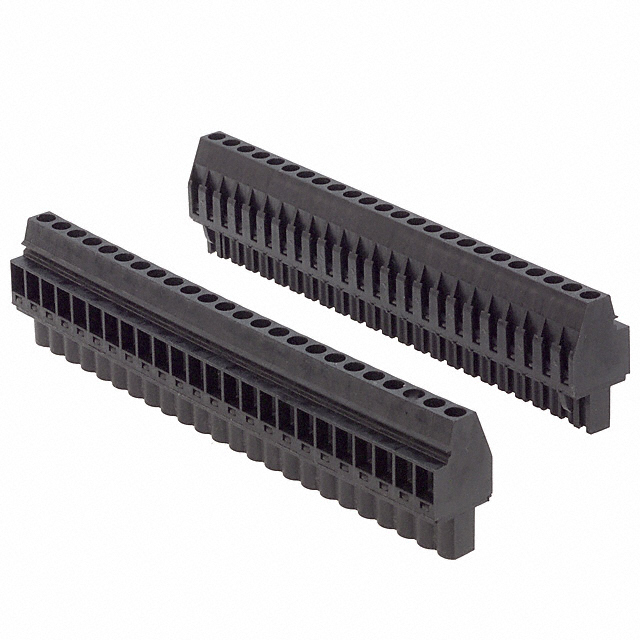

Image shown is a representation only
Manufacturer
Manufacturer No
1638030000
Packaging
Bulk
Description
TERM BLOCK PLUG 24POS 5MM
Detailed Description
24 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line)
Datasheet
Type
Plug, Female Sockets
Color
Black
Pitch
0.197" (5.00mm)
Series
Omnimate BL
Features
Retention Latches (Non-Wire Side)
Packaging
Bulk
Screw Size
M2.5
Current - UL
10 A
Manufacturer
Weidmüller
Voltage - UL
300 V
Current - IEC
15A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
400 V
Torque - Screw
0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry
270°
Contact Material
Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Number of Levels
1
Insulation Height
1.059" (26.90mm)
Termination Style
Screw - Clamping Yoke (Tension Sleeve)
Wire Strip Length
7mm
Ingress Protection
IP20
Number of Positions
24
Positions Per Level
24
Contact Mating Finish
Tin
Operating Temperature
-50°C ~ 100°C
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm²
0.5-2.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Series | Omnimate BL |
| Features | Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Screw Size | M2.5 |
| Current - UL | 10 A |
| Manufacturer | Weidmüller |
| Voltage - UL | 300 V |
| Current - IEC | 15A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 400 V |
| Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Plug Wire Entry | 270° |
| Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Levels | 1 |
| Insulation Height | 1.059" (26.90mm) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Wire Strip Length | 7mm |
| Ingress Protection | IP20 |
| Number of Positions | 24 |
| Positions Per Level | 24 |
| Contact Mating Finish | Tin |
| Operating Temperature | -50°C ~ 100°C |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.5-2.5mm² |
| Material Flammability Rating | UL94 V-0 |
