Step1: Product

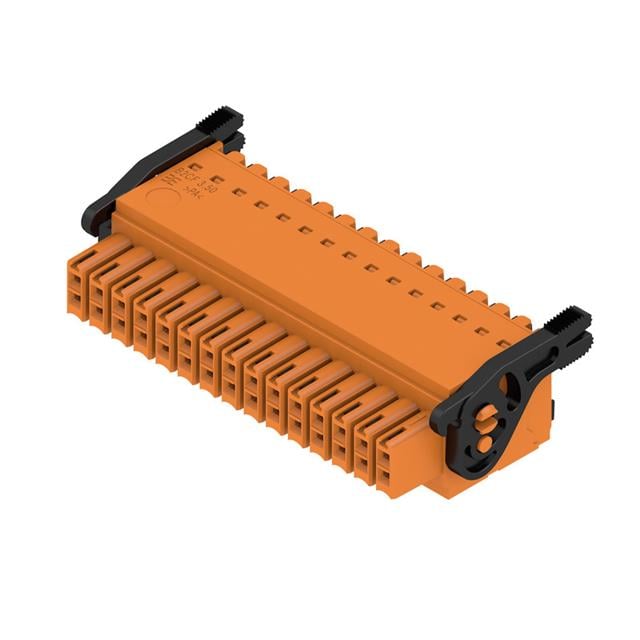

Weidmüller 1278180000
Image shown is a representation only
Manufacturer
Manufacturer No
1278180000
Packaging
Bulk
Description
TERM BLOCK PLUG 30POS 3.50MM
Detailed Description
30 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
DataSheet
Type
Plug, Female Sockets
Color
Orange
Pitch
0.138" (3.50mm)
Series
Omnimate B2CF
Features
Ejector Latches
Packaging
Bulk
Part Status
Active
Current - UL
9.5 A
Manufacturer
Weidmüller
Voltage - UL
300 V
Current - IEC
13.4A
Mounting Type
Free Hanging (In-Line)
Voltage - IEC
320 V
Plug Wire Entry
180°
Contact Material
Copper Alloy
Housing Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Levels
2
Insulation Height
0.598" (15.19mm)
Termination Style
Screwless - Leg Spring, Push-In Spring
Wire Strip Length
10mm
Ingress Protection
IP20
Number of Positions
30
Positions Per Level
15
Contact Mating Finish
Tin
Operating Temperature
-50°C ~ 120°C
Wire Gauge or Range - AWG
16-26 AWG
Wire Gauge or Range - mm²
0.14-1.5mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Orange |
| Pitch | 0.138" (3.50mm) |
| Series | Omnimate B2CF |
| Features | Ejector Latches |
| Packaging | Bulk |
| Part Status | Active |
| Current - UL | 9.5 A |
| Manufacturer | Weidmüller |
| Voltage - UL | 300 V |
| Current - IEC | 13.4A |
| Mounting Type | Free Hanging (In-Line) |
| Voltage - IEC | 320 V |
| Plug Wire Entry | 180° |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Levels | 2 |
| Insulation Height | 0.598" (15.19mm) |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Wire Strip Length | 10mm |
| Ingress Protection | IP20 |
| Number of Positions | 30 |
| Positions Per Level | 15 |
| Contact Mating Finish | Tin |
| Operating Temperature | -50°C ~ 120°C |
| Wire Gauge or Range - AWG | 16-26 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Material Flammability Rating | UL94 V-0 |
