Step1: Product
WeEn Semiconductors NCR125W-125MX

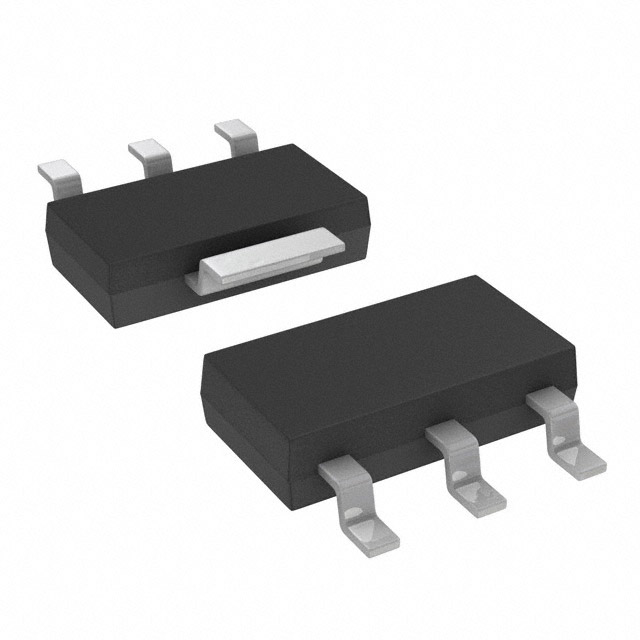

Image shown is a representation only
Manufacturer
Manufacturer No
NCR125W-125MX
Package
TO-261-4, TO-261AA
Packaging
Tape & Reel (TR)
Description
SCR 1.25KV 1.25A SC-73
Detailed Description
SCR 1.25 kV 1.25 A Sensitive Gate Surface Mount SC-73
DataSheet
SCR Type
Sensitive Gate
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
WeEn Semiconductors
Mounting Type
Surface Mount
Package / Case
TO-261-4, TO-261AA
Base Product Number
NCR125
Voltage - Off State
1.25 kV
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
SC-73
Current - Hold (Ih) (Max)
10 mA
Current - Off State (Max)
1 mA
Voltage - On State (Vtm) (Max)
1.5 V
Current - Gate Trigger (Igt) (Max)
100 µA
Current - On State (It (AV)) (Max)
800 mA
Voltage - Gate Trigger (Vgt) (Max)
800 mV
Current - On State (It (RMS)) (Max)
1.25 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
20A, 22A
| Attribute | Value |
|---|---|
| SCR Type | Sensitive Gate |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | WeEn Semiconductors |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | NCR125 |
| Voltage - Off State | 1.25 kV |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | SC-73 |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Off State (Max) | 1 mA |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Current - On State (It (AV)) (Max) | 800 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - On State (It (RMS)) (Max) | 1.25 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A, 22A |
