Step1: Product
WeEn Semiconductors BT169D,116

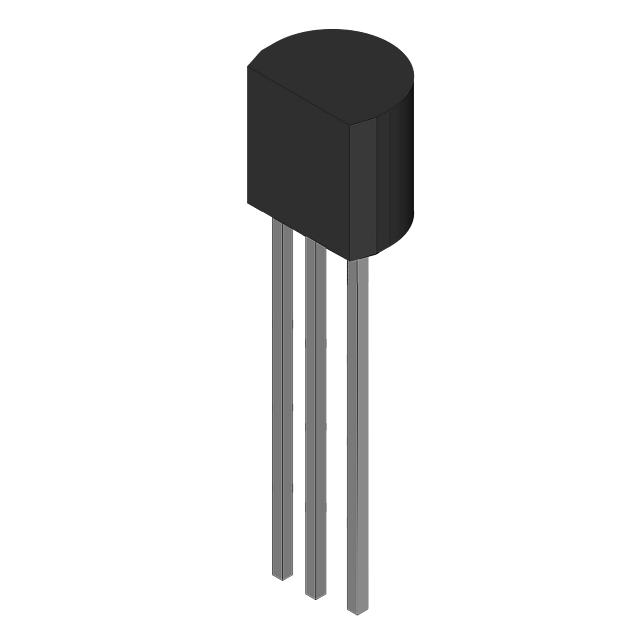

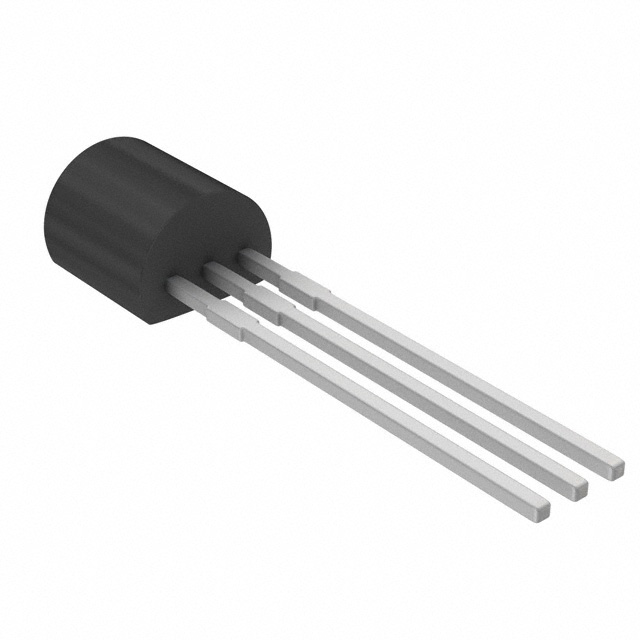

Image shown is a representation only
Manufacturer
Manufacturer No
BT169D,116
Quantity
5455
Availability
In Stock
Package
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SCR 400V 800MA TO-92-3
Detailed Description
SCR 400 V 800 mA Sensitive Gate Through Hole TO-92-3
DataSheet
SCR Type
Sensitive Gate
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Manufacturer
WeEn Semiconductors
Mounting Type
Through Hole
Package / Case
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Base Product Number
BT169
Voltage - Off State
400 V
Supplier Device Package
TO-92-3
Current - Hold (Ih) (Max)
5 mA
Current - Off State (Max)
100 µA
Voltage - On State (Vtm) (Max)
1.7 V
Current - Gate Trigger (Igt) (Max)
200 µA
Current - On State (It (AV)) (Max)
500 mA
Voltage - Gate Trigger (Vgt) (Max)
800 mV
Current - On State (It (RMS)) (Max)
800 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)
8A, 9A
| Attribute | Value |
|---|---|
| SCR Type | Sensitive Gate |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Manufacturer | WeEn Semiconductors |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Base Product Number | BT169 |
| Voltage - Off State | 400 V |
| Supplier Device Package | TO-92-3 |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Off State (Max) | 100 µA |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - On State (It (AV)) (Max) | 500 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - On State (It (RMS)) (Max) | 800 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8A, 9A |
