Step1: Product
WeEn Semiconductors BT151S-650R,118

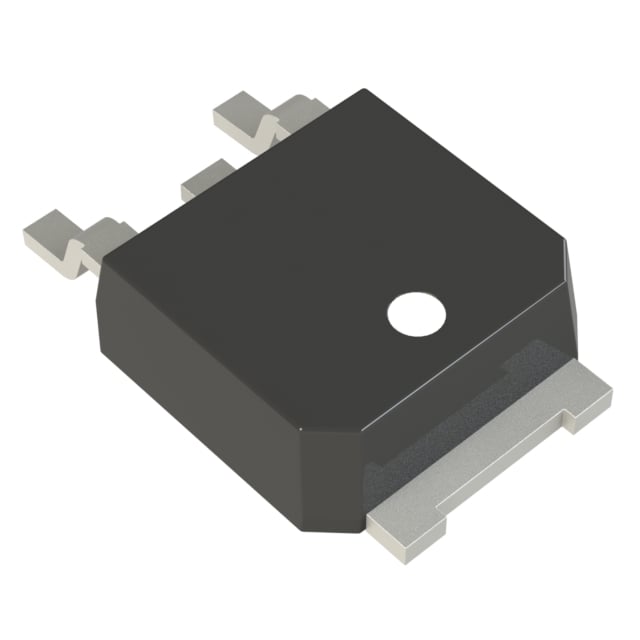

Image shown is a representation only
Manufacturer
Manufacturer No
BT151S-650R,118
Quantity
4701
Availability
In Stock
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
SCR 650V 12A DPAK
Detailed Description
SCR 650 V 12 A Standard Recovery Surface Mount DPAK
DataSheet
SCR Type
Standard Recovery
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Manufacturer
WeEn Semiconductors
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Base Product Number
BT151
Voltage - Off State
650 V
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
DPAK
Current - Hold (Ih) (Max)
20 mA
Current - Off State (Max)
500 µA
Voltage - On State (Vtm) (Max)
1.75 V
Current - Gate Trigger (Igt) (Max)
15 mA
Current - On State (It (AV)) (Max)
7.5 A
Voltage - Gate Trigger (Vgt) (Max)
1.5 V
Current - On State (It (RMS)) (Max)
12 A
Current - Non Rep. Surge 50, 60Hz (Itsm)
120A, 132A
| Attribute | Value |
|---|---|
| SCR Type | Standard Recovery |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Manufacturer | WeEn Semiconductors |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | BT151 |
| Voltage - Off State | 650 V |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | DPAK |
| Current - Hold (Ih) (Max) | 20 mA |
| Current - Off State (Max) | 500 µA |
| Voltage - On State (Vtm) (Max) | 1.75 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - On State (It (AV)) (Max) | 7.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 12 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A, 132A |
