Step1: Product
Würth Elektronik 62130621821

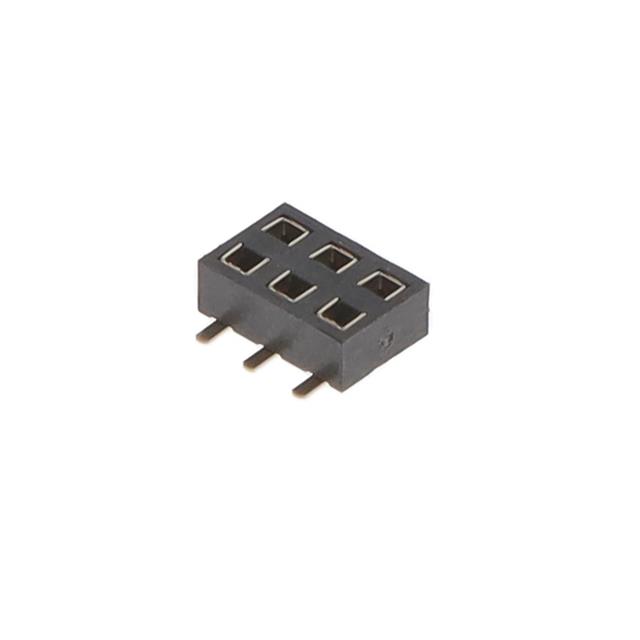

Image shown is a representation only
Manufacturer
Manufacturer No
62130621821
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
WR-PHD 2.00 MM DUAL SMT SOCKET H
Detailed Description
6 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
DataSheet
Mfr
Würth Elektronik
Style
Board to Board
Series
WR-PHD
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Bottom or Top Entry
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
200VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.083" (2.10mm)
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
6
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Gold
Current Rating (Amps)
2A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Board |
| Series | WR-PHD |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Bottom or Top Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 200VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.083" (2.10mm) |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 2A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
