Step1: Product

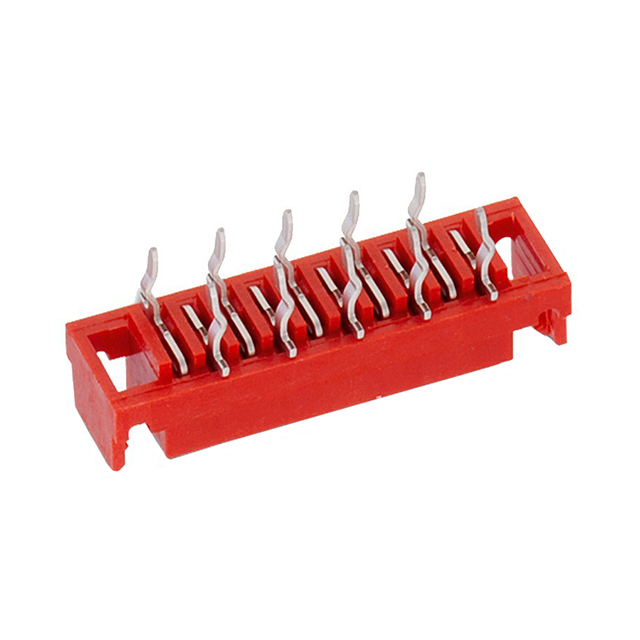

Würth Elektronik 690367190472
Image shown is a representation only
Manufacturer
Manufacturer No
690367190472
Packaging
Tube
Description
WR-MM FEMALE CONNECTOR WITH LATC
Detailed Description
4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
DataSheet
Mfr
Würth Elektronik
Style
Board to Board or Cable
Series
WR-MM
Packaging
Tube
Part Status
Active
Termination
Kinked Pin, Solder
Contact Type
Forked
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Lock
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
100VAC
Contact Material
Phosphor Bronze
Insulation Color
Red
Insulation Height
0.165" (4.20mm)
Insulation Material
Polybutylene Terephthalate (PBT)
Number of Positions
4
Contact Finish - Post
Tin
Contact Length - Post
0.114" (2.90mm)
Current Rating (Amps)
1.5A per Contact
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Board or Cable |
| Series | WR-MM |
| Packaging | Tube |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Contact Type | Forked |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 100VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Red |
| Insulation Height | 0.165" (4.20mm) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 4 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.114" (2.90mm) |
| Current Rating (Amps) | 1.5A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
