Step1: Product
Würth Elektronik 690367292276

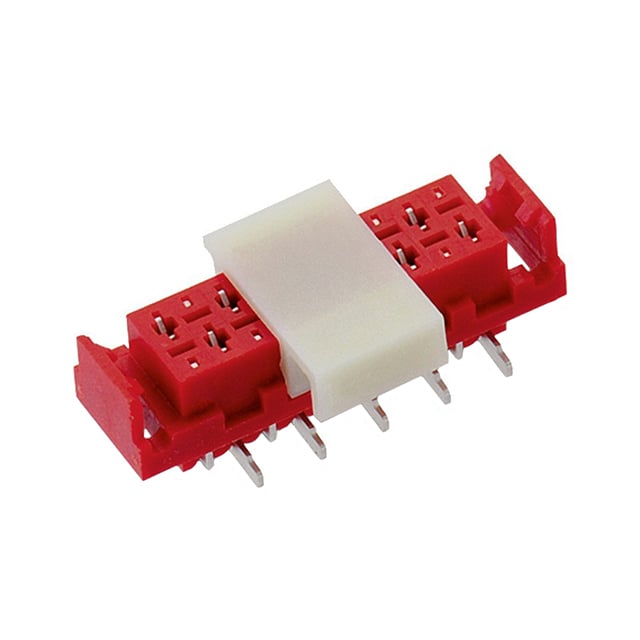

Image shown is a representation only
Manufacturer
Manufacturer No
690367292276
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
WR-MM FEMALE SMT CONNECTOR WITH
Detailed Description
22 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
Datasheet
Mfr
Würth Elektronik
Style
Board to Board or Cable
Series
WR-MM
Features
Pick and Place
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Contact Type
Forked
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Latch Lock
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
100VAC
Contact Material
Phosphor Bronze
Insulation Color
Red
Insulation Height
0.207" (5.25mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
22
Contact Finish - Post
Tin
Current Rating (Amps)
1.5A per Contact
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Board or Cable |
| Series | WR-MM |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Latch Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 100VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Red |
| Insulation Height | 0.207" (5.25mm) |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 22 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1.5A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
