Step1: Product

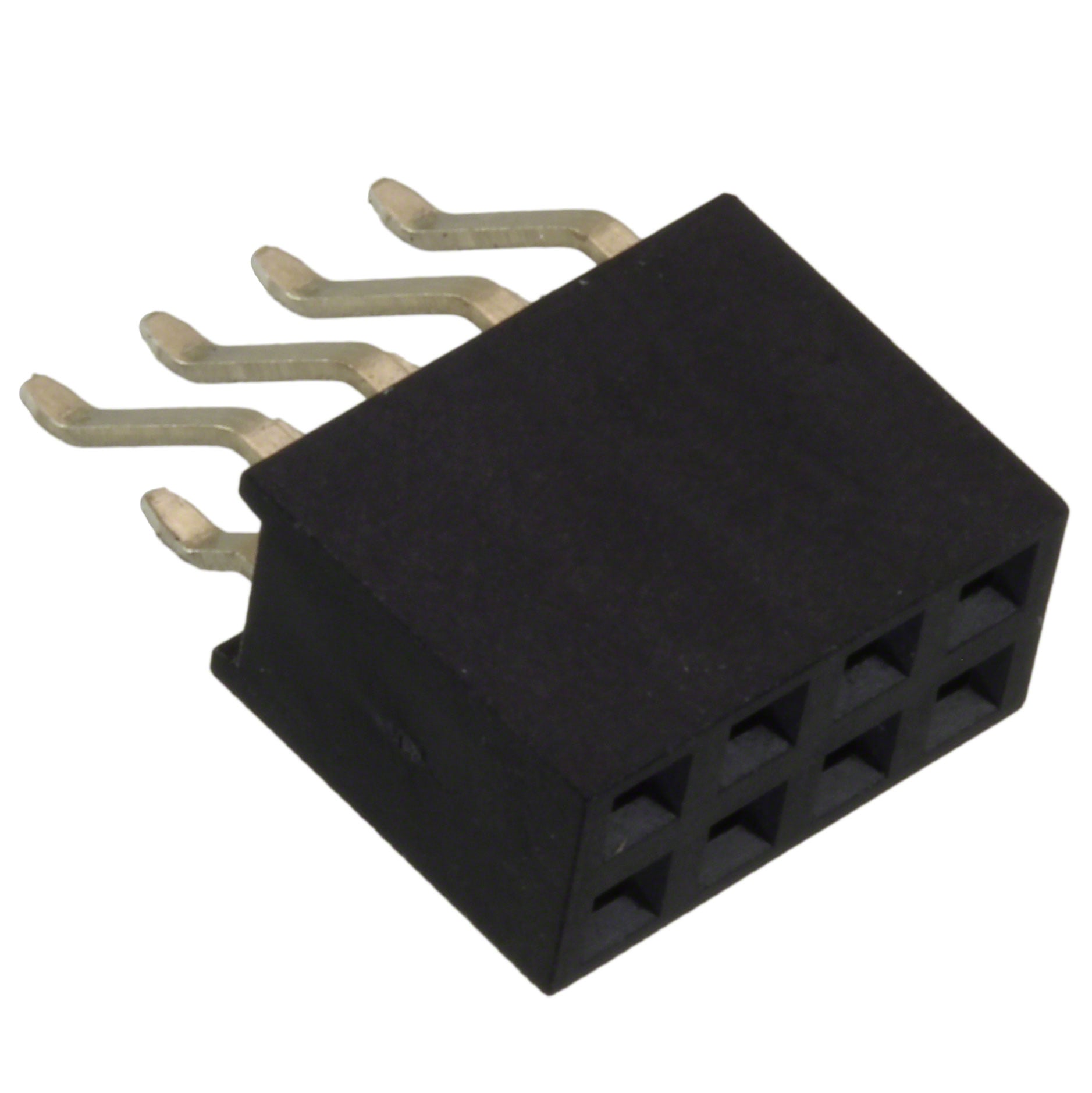

Würth Elektronik 610108249221
Image shown is a representation only
Manufacturer
Manufacturer No
610108249221
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HDR 8POS 0.1 GOLD SMD R/A
Detailed Description
8 Position Header Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
Datasheet
Mfr
Würth Elektronik
Style
Board to Board
Series
WR-PHD
Features
Board Guide
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Contact Type
Forked
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.197" (5.00mm)
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
8
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Würth Elektronik |
| Style | Board to Board |
| Series | WR-PHD |
| Features | Board Guide |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact Type | Forked |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.197" (5.00mm) |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
