Step1: Product
Vishay Siliconix SIZ700DT-T1-GE3

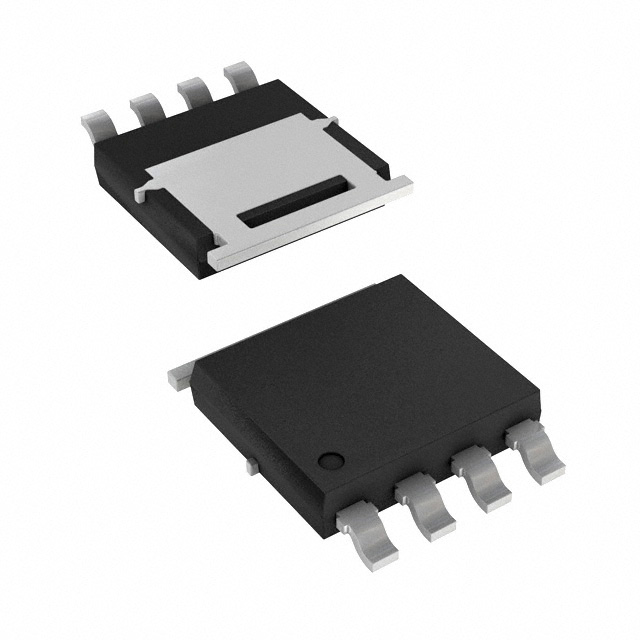

Image shown is a representation only
Manufacturer
Manufacturer No
SIZ700DT-T1-GE3
Package
6-PowerPair™
Packaging
Tape & Reel (TR)
Description
MOSFET 2N-CH 20V 16A 6POWERPAIR
Detailed Description
Mosfet Array 20V 16A 2.36W, 2.8W Surface Mount 6-PowerPair™
DataSheet
Series
TrenchFET®
Packaging
Tape & Reel (TR)
Technology
MOSFET (Metal Oxide)
Part Status
Obsolete
Power - Max
2.36W, 2.8W
Manufacturer
Vishay Siliconix
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Surface Mount
Package / Case
6-PowerPair™
Vgs(th) (Max) @ Id
2.2V @ 250µA
Base Product Number
SIZ700
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
8.6mOhm @ 15A, 10V
Supplier Device Package
6-PowerPair™
Gate Charge (Qg) (Max) @ Vgs
35nC @ 10V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
1300pF @ 10V
Current - Continuous Drain (Id) @ 25°C
16A
| Attribute | Value |
|---|---|
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Obsolete |
| Power - Max | 2.36W, 2.8W |
| Manufacturer | Vishay Siliconix |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | 6-PowerPair™ |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Base Product Number | SIZ700 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 8.6mOhm @ 15A, 10V |
| Supplier Device Package | 6-PowerPair™ |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 10V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 16A |
