Step1: Product

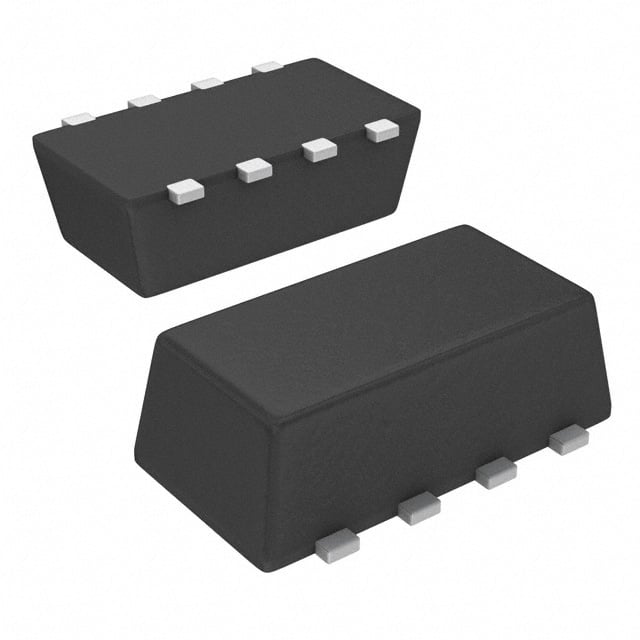

Vishay Siliconix SI5935CDC-T1-GE3
Image shown is a representation only
Manufacturer
Manufacturer No
SI5935CDC-T1-GE3
Quantity
9095
Availability
In Stock
Package
8-SMD, Flat Leads
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2P-CH 20V 4A 1206-8
Detailed Description
Mosfet Array 20V 4A 3.1W Surface Mount 1206-8 ChipFET™
DataSheet
Series
TrenchFET®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
3.1W
Manufacturer
Vishay Siliconix
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
8-SMD, Flat Leads
Vgs(th) (Max) @ Id
1V @ 250µA
Base Product Number
SI5935
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
100mOhm @ 3.1A, 4.5V
Supplier Device Package
1206-8 ChipFET™
Gate Charge (Qg) (Max) @ Vgs
11nC @ 5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
455pF @ 10V
Current - Continuous Drain (Id) @ 25°C
4A
| Attribute | Value |
|---|---|
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 3.1W |
| Manufacturer | Vishay Siliconix |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Leads |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Base Product Number | SI5935 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 3.1A, 4.5V |
| Supplier Device Package | 1206-8 ChipFET™ |
| Gate Charge (Qg) (Max) @ Vgs | 11nC @ 5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 455pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 4A |
