Step1: Product

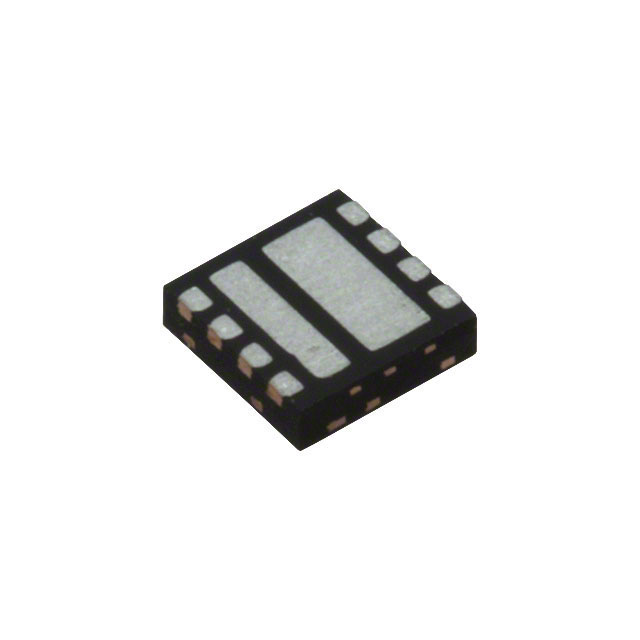

Vishay Siliconix SIZ340DT-T1-GE3
Image shown is a representation only
Manufacturer
Manufacturer No
SIZ340DT-T1-GE3
Quantity
7604
Availability
In Stock
Package
8-PowerWDFN
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 30V 30A/40A 8PWR33
Detailed Description
Mosfet Array 30V 30A, 40A 16.7W, 31W Surface Mount 8-Power33 (3x3)
DataSheet
Series
PowerPAIR®, TrenchFET®
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
16.7W, 31W
Manufacturer
Vishay Siliconix
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Surface Mount
Package / Case
8-PowerWDFN
Vgs(th) (Max) @ Id
2.4V @ 250µA
Base Product Number
SIZ340
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
9.5mOhm @ 15.6A, 10V
Supplier Device Package
8-Power33 (3x3)
Gate Charge (Qg) (Max) @ Vgs
19nC @ 10V
Drain to Source Voltage (Vdss)
30V
Input Capacitance (Ciss) (Max) @ Vds
760pF @ 15V
Current - Continuous Drain (Id) @ 25°C
30A, 40A
| Attribute | Value |
|---|---|
| Series | PowerPAIR®, TrenchFET® |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 16.7W, 31W |
| Manufacturer | Vishay Siliconix |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Base Product Number | SIZ340 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 15.6A, 10V |
| Supplier Device Package | 8-Power33 (3x3) |
| Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 760pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 30A, 40A |
