Step1: Product
Vishay Siliconix SIHB28N60EF-GE3

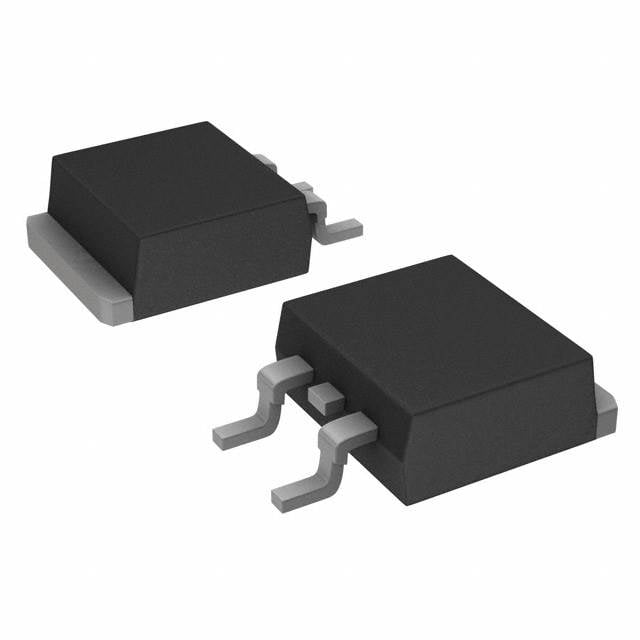

Image shown is a representation only
Manufacturer
Manufacturer No
SIHB28N60EF-GE3
Package
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Packaging
Tube
Description
MOSFET N-CH 600V 28A D2PAK
Detailed Description
N-Channel 600 V 28A (Tc) 250W (Tc) Surface Mount D2PAK
DataSheet
Mfr
Vishay Siliconix
FET Type
N-Channel
Packaging
Tube
Vgs (Max)
±30V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Vgs(th) (Max) @ Id
4V @ 250µA
Base Product Number
SIHB28
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
123mOhm @ 14A, 10V
Power Dissipation (Max)
250W (Tc)
Supplier Device Package
D2PAK
Gate Charge (Qg) (Max) @ Vgs
120 nC @ 10 V
Drain to Source Voltage (Vdss)
600 V
Input Capacitance (Ciss) (Max) @ Vds
2714 pF @ 100 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
28A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Vishay Siliconix |
| FET Type | N-Channel |
| Packaging | Tube |
| Vgs (Max) | ±30V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Base Product Number | SIHB28 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 123mOhm @ 14A, 10V |
| Power Dissipation (Max) | 250W (Tc) |
| Supplier Device Package | D2PAK |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 600 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2714 pF @ 100 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Tc) |
