Vishay Siliconix IRFL9014TRPBF

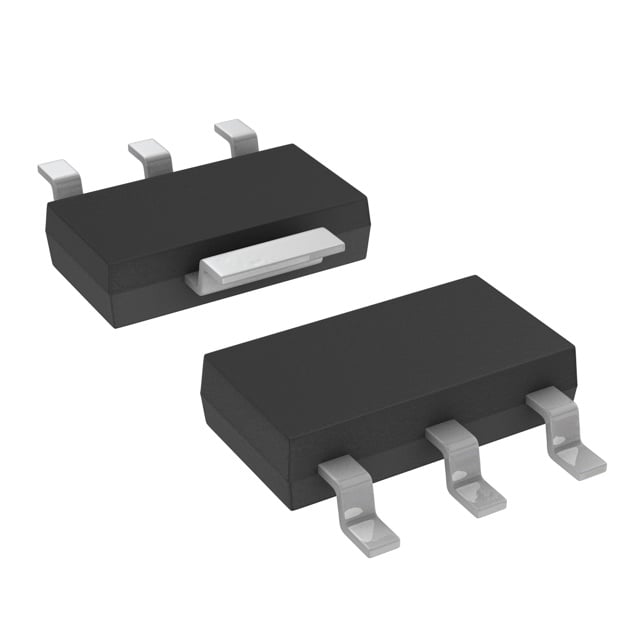

Image shown is a representation only
Manufacturer
Manufacturer No
IRFL9014TRPBF
Quantity
47315
Availability
In Stock
Package
TO-261-4, TO-261AA
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET P-CH 60V 1.8A SOT223
Detailed Description
P-Channel 60 V 1.8A (Tc) 2W (Ta), 3.1W (Tc) Surface Mount SOT-223
DataSheet
Mfr
Vishay Siliconix
FET Type
P-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
Part Status
Active
Mounting Type
Surface Mount
Package / Case
TO-261-4, TO-261AA
Vgs(th) (Max) @ Id
4V @ 250µA
Base Product Number
IRFL9014
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
500mOhm @ 1.1A, 10V
Power Dissipation (Max)
2W (Ta), 3.1W (Tc)
Supplier Device Package
SOT-223
Gate Charge (Qg) (Max) @ Vgs
12 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
270 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
10V
Current - Continuous Drain (Id) @ 25°C
1.8A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Vishay Siliconix |
| FET Type | P-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Base Product Number | IRFL9014 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 1.1A, 10V |
| Power Dissipation (Max) | 2W (Ta), 3.1W (Tc) |
| Supplier Device Package | SOT-223 |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 270 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 1.8A (Tc) |
