Step1: Product

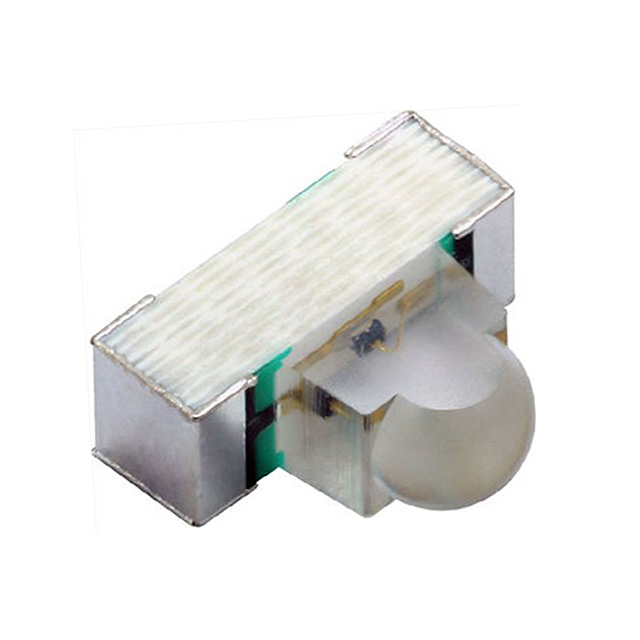

Vishay Semiconductor Opto Division VSMY14940
Image shown is a representation only
Manufacturer
Manufacturer No
VSMY14940
Quantity
6342
Availability
In Stock
Package
2-SMD, No Lead Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
EMITTER IR 940NM 70MA SMD
Detailed Description
Infrared (IR) Emitter 940nm 1.48V 70mA 50mW/sr @ 70mA 18° 2-SMD, No Lead Exposed Pad
DataSheet
Type
Infrared (IR)
Series
SurfLight™
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Wavelength
940nm
Orientation
Side View
Part Status
Active
Manufacturer
Vishay Semiconductor Opto Division
Mounting Type
Surface Mount, Right Angle
Viewing Angle
18°
Package / Case
2-SMD, No Lead Exposed Pad
Base Product Number
MY14940
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Forward (Vf) (Typ)
1.48V
Current - DC Forward (If) (Max)
70mA
Radiant Intensity (Ie) Min @ If
50mW/sr @ 70mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Series | SurfLight™ |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Wavelength | 940nm |
| Orientation | Side View |
| Part Status | Active |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 18° |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Base Product Number | MY14940 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.48V |
| Current - DC Forward (If) (Max) | 70mA |
| Radiant Intensity (Ie) Min @ If | 50mW/sr @ 70mA |
