Step1: Product
Vishay Semiconductor Opto Division TSAL6100

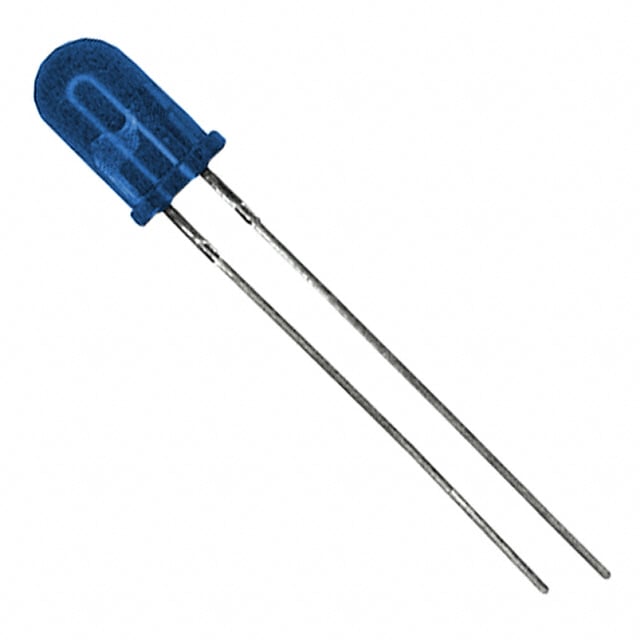

Image shown is a representation only
Manufacturer
Manufacturer No
TSAL6100
Quantity
6990
Availability
In Stock
Package
Radial, 5mm Dia (T 1 3/4)
Packaging
Bulk
Description
EMITTER IR 940NM 100MA RADIAL
Detailed Description
Infrared (IR) Emitter 940nm 1.35V 100mA 80mW/sr @ 100mA 20° Radial, 5mm Dia (T 1 3/4)
DataSheet
Type
Infrared (IR)
Packaging
Bulk
Wavelength
940nm
Orientation
Top View
Part Status
Active
Manufacturer
Vishay Semiconductor Opto Division
Mounting Type
Through Hole
Viewing Angle
20°
Package / Case
Radial, 5mm Dia (T 1 3/4)
Base Product Number
TSAL6100
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Forward (Vf) (Typ)
1.35V
Current - DC Forward (If) (Max)
100mA
Radiant Intensity (Ie) Min @ If
80mW/sr @ 100mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Packaging | Bulk |
| Wavelength | 940nm |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Through Hole |
| Viewing Angle | 20° |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Base Product Number | TSAL6100 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 80mW/sr @ 100mA |
