Vishay Semiconductor Opto Division VSMY12940

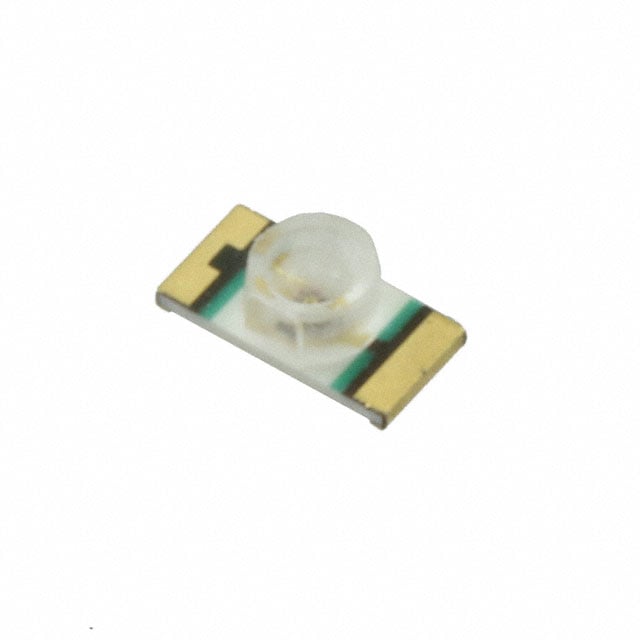

Image shown is a representation only
Manufacturer
Manufacturer No
VSMY12940
Quantity
1936
Availability
In Stock
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
EMITTER IR 940NM 70MA SMD
Detailed Description
Infrared (IR) Emitter 940nm 1.6V 70mA 16mW/sr @ 70mA 80° 1206 (3216 Metric)
DataSheet
Type
Infrared (IR)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Wavelength
940nm
Orientation
Top View
Part Status
Active
Manufacturer
Vishay Semiconductor Opto Division
Mounting Type
Surface Mount
Viewing Angle
80°
Package / Case
1206 (3216 Metric)
Base Product Number
MY12940
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Forward (Vf) (Typ)
1.6V
Current - DC Forward (If) (Max)
70mA
Radiant Intensity (Ie) Min @ If
16mW/sr @ 70mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Wavelength | 940nm |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Surface Mount |
| Viewing Angle | 80° |
| Package / Case | 1206 (3216 Metric) |
| Base Product Number | MY12940 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 70mA |
| Radiant Intensity (Ie) Min @ If | 16mW/sr @ 70mA |
