Vishay Semiconductor Opto Division VSMB2020X01

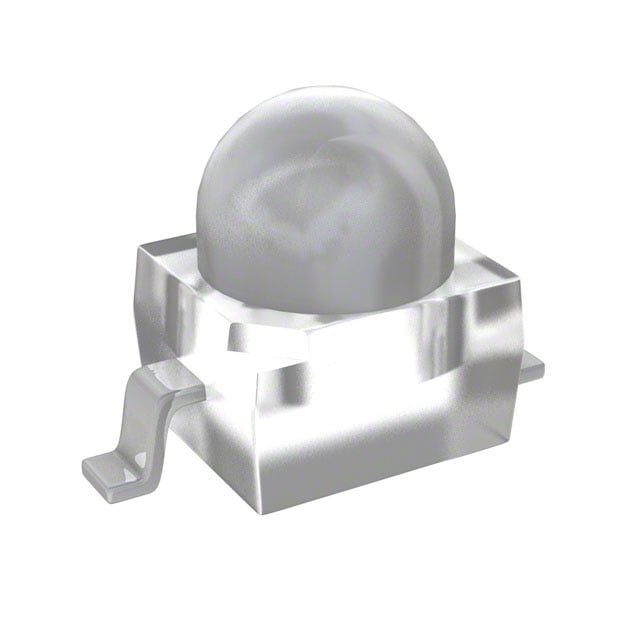

Image shown is a representation only
Manufacturer
Manufacturer No
VSMB2020X01
Quantity
2000
Availability
In Stock
Package
2-SMD, Gull Wing
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
EMITTER IR 940NM 100MA SMD
Detailed Description
Infrared (IR) Emitter 940nm 1.35V 100mA 20mW/sr @ 100mA 24° 2-SMD, Gull Wing
DataSheet
Type
Infrared (IR)
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Wavelength
940nm
Orientation
Top View
Part Status
Active
Manufacturer
Vishay Semiconductor Opto Division
Mounting Type
Surface Mount
Viewing Angle
24°
Package / Case
2-SMD, Gull Wing
Base Product Number
VSMB2020
Operating Temperature
-40°C ~ 85°C (TA)
Voltage - Forward (Vf) (Typ)
1.35V
Current - DC Forward (If) (Max)
100mA
Radiant Intensity (Ie) Min @ If
20mW/sr @ 100mA
| Attribute | Value |
|---|---|
| Type | Infrared (IR) |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Wavelength | 940nm |
| Orientation | Top View |
| Part Status | Active |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Surface Mount |
| Viewing Angle | 24° |
| Package / Case | 2-SMD, Gull Wing |
| Base Product Number | VSMB2020 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 20mW/sr @ 100mA |
