Step1: Product

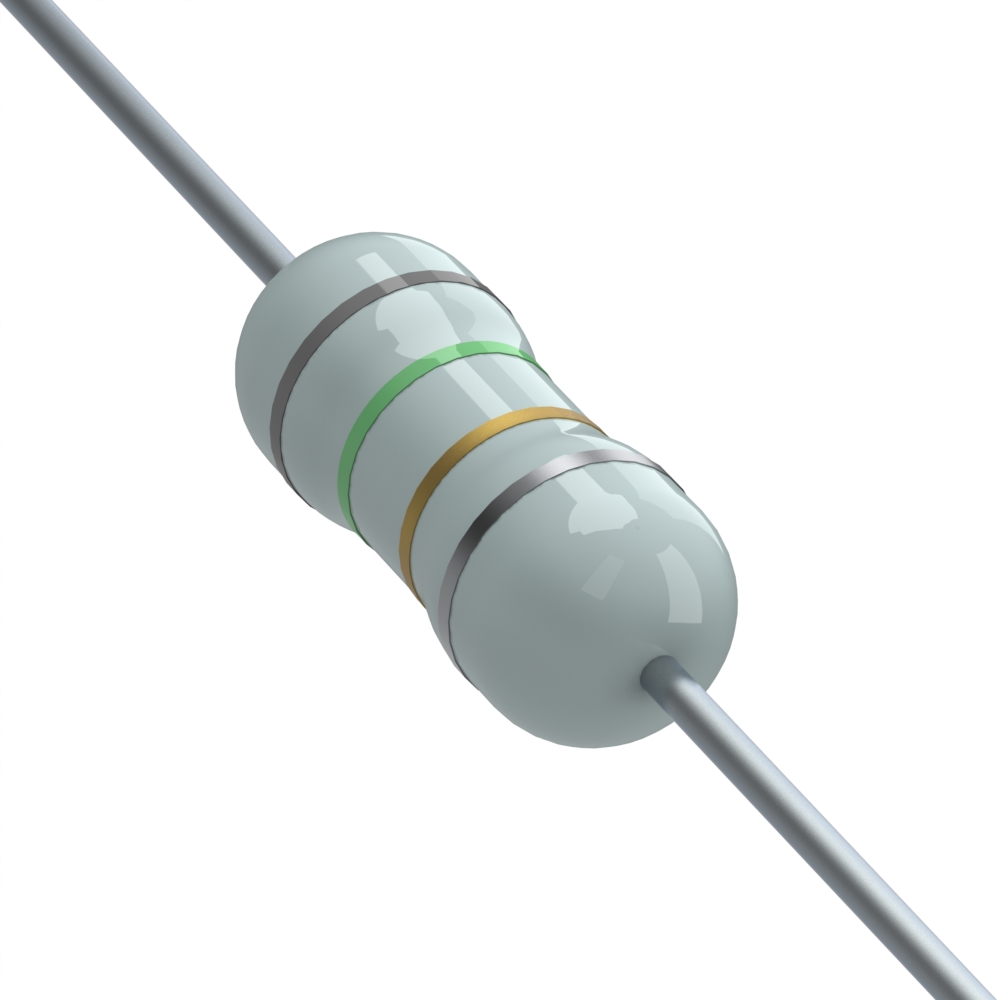

Vishay Dale IRF36ER561K
Image shown is a representation only
Manufacturer
Manufacturer No
IRF36ER561K
Package
Axial
Packaging
Bag
Description
FIXED IND 560UH 120MA 8.5 OHM TH
Detailed Description
560 µH Unshielded Inductor 120 mA 8.5Ohm Max Axial
Datasheet
Mfr
Vishay Dale
Series
IRF-36
Q @ Freq
60 @ 796kHz
Packaging
Bag
Shielding
Unshielded
Tolerance
±10%
Inductance
560 µH
Mounting Type
Through Hole
Package / Case
Axial
Material - Core
Ferrite
Size / Dimension
0.157" Dia x 0.394" L (4.00mm x 10.00mm)
DC Resistance (DCR)
8.5Ohm Max
Current Rating (Amps)
120 mA
Operating Temperature
-20°C ~ 105°C
Frequency - Self Resonant
2.1MHz
Inductance Frequency - Test
796 kHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Series | IRF-36 |
| Q @ Freq | 60 @ 796kHz |
| Packaging | Bag |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 560 µH |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Material - Core | Ferrite |
| Size / Dimension | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) |
| DC Resistance (DCR) | 8.5Ohm Max |
| Current Rating (Amps) | 120 mA |
| Operating Temperature | -20°C ~ 105°C |
| Frequency - Self Resonant | 2.1MHz |
| Inductance Frequency - Test | 796 kHz |
