Step1: Product

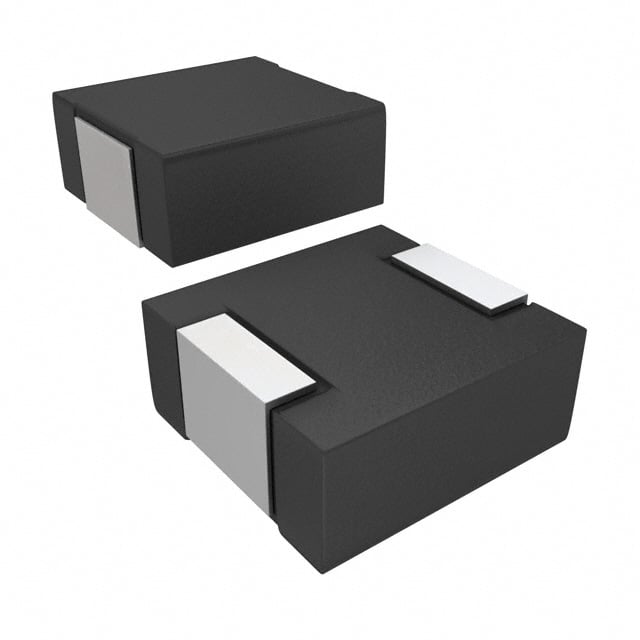

Vishay Dale IHLP2525CZER4R7M11
Image shown is a representation only
Manufacturer
Manufacturer No
IHLP2525CZER4R7M11
Quantity
9163
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 4.7UH 6A 33.4 MOHM SMD
Detailed Description
4.7 µH Shielded Molded Inductor 6 A 33.4mOhm Max Nonstandard
DataSheet
Mfr
Vishay Dale
Type
Molded
Series
IHLP-2525CZ-11
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Inductance
4.7 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Material - Core
Iron Powder
Size / Dimension
0.270" L x 0.255" W (6.86mm x 6.47mm)
DC Resistance (DCR)
33.4mOhm Max
Current Rating (Amps)
6 A
Height - Seated (Max)
0.118" (3.00mm)
Operating Temperature
-55°C ~ 125°C
Current - Saturation (Isat)
4A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Type | Molded |
| Series | IHLP-2525CZ-11 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 4.7 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Material - Core | Iron Powder |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| DC Resistance (DCR) | 33.4mOhm Max |
| Current Rating (Amps) | 6 A |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Current - Saturation (Isat) | 4A |
| Inductance Frequency - Test | 100 kHz |
