Step1: Product
Vishay Dale IHLP1616BZERR22M5A

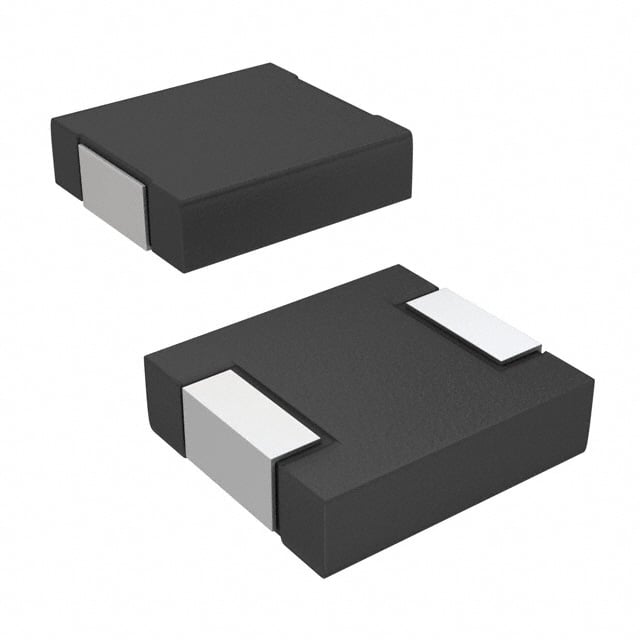

Image shown is a representation only
Manufacturer
Manufacturer No
IHLP1616BZERR22M5A
Quantity
5111
Availability
In Stock
Package
Nonstandard
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 220NH 12.6A 7.5 MOHM
Detailed Description
220 nH Shielded Molded Inductor 12.6 A 7.5mOhm Max Nonstandard
DataSheet
Mfr
Vishay Dale
Type
Molded
Series
IHLP-1616BZ-5A
Ratings
AEC-Q200
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Inductance
220 nH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.175" L x 0.160" W (4.45mm x 4.06mm)
DC Resistance (DCR)
7.5mOhm Max
Current Rating (Amps)
12.6 A
Height - Seated (Max)
0.079" (2.00mm)
Operating Temperature
-55°C ~ 155°C
Frequency - Self Resonant
171MHz
Current - Saturation (Isat)
12A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Type | Molded |
| Series | IHLP-1616BZ-5A |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 220 nH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| DC Resistance (DCR) | 7.5mOhm Max |
| Current Rating (Amps) | 12.6 A |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -55°C ~ 155°C |
| Frequency - Self Resonant | 171MHz |
| Current - Saturation (Isat) | 12A |
| Inductance Frequency - Test | 100 kHz |
