Step1: Product
Vishay Dale IHLP1212BZEZ2R2M1Z

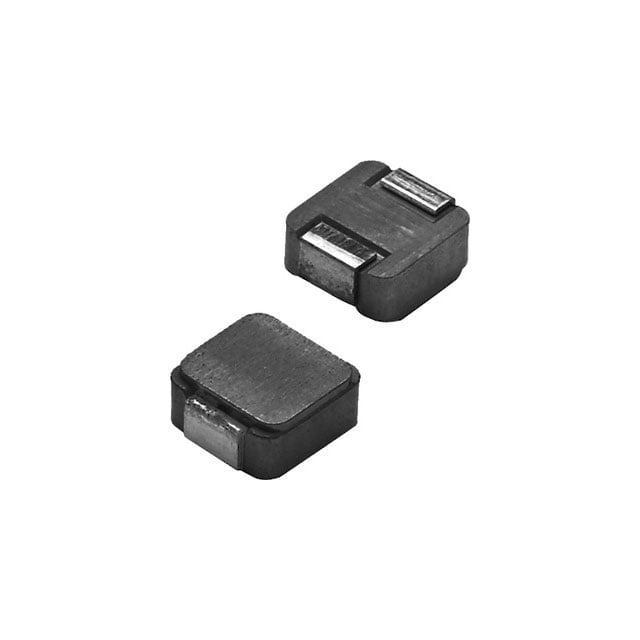

Image shown is a representation only
Manufacturer
Manufacturer No
IHLP1212BZEZ2R2M1Z
Quantity
2825
Availability
In Stock
Package
1212 (3030 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 2.2UH 5.7A 40.5 MOHM
Detailed Description
2.2 µH Shielded Molded Inductor 5.7 A 40.5mOhm Max 1212 (3030 Metric)
DataSheet
Mfr
Vishay Dale
Type
Molded
Series
IHLP1212-EZ-1Z
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Inductance
2.2 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
1212 (3030 Metric)
Size / Dimension
0.118" L x 0.118" W (3.00mm x 3.00mm)
Base Product Number
IHLP1212
DC Resistance (DCR)
40.5mOhm Max
Current Rating (Amps)
5.7 A
Height - Seated (Max)
0.079" (2.00mm)
Operating Temperature
-55°C ~ 125°C
Supplier Device Package
1212
Frequency - Self Resonant
35MHz
Current - Saturation (Isat)
5.3A
Inductance Frequency - Test
100 kHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Type | Molded |
| Series | IHLP1212-EZ-1Z |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 2.2 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Base Product Number | IHLP1212 |
| DC Resistance (DCR) | 40.5mOhm Max |
| Current Rating (Amps) | 5.7 A |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 1212 |
| Frequency - Self Resonant | 35MHz |
| Current - Saturation (Isat) | 5.3A |
| Inductance Frequency - Test | 100 kHz |
