Step1: Product
Vishay Dale IRF36ER100K

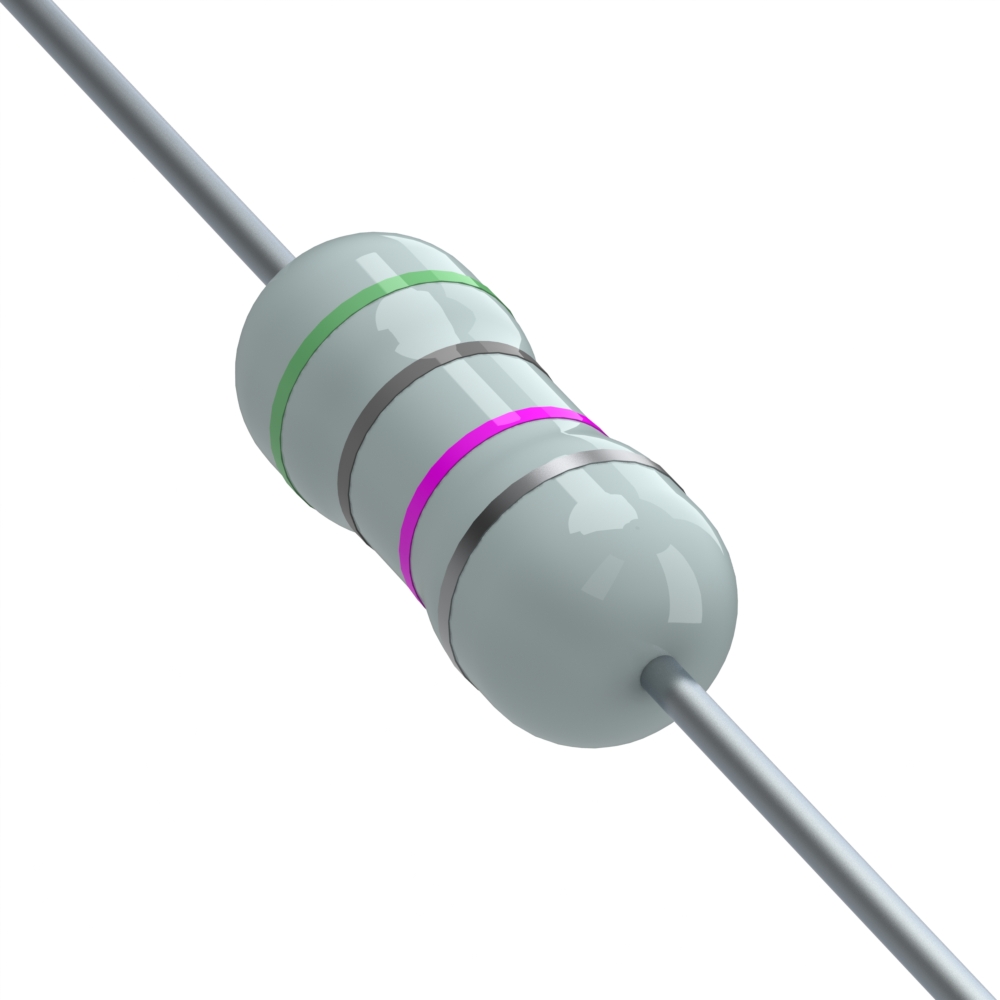

Image shown is a representation only
Manufacturer
Manufacturer No
IRF36ER100K
Package
Axial
Packaging
Bag
Description
FIXED IND 10UH 500MA 580 MOHM TH
Detailed Description
10 µH Unshielded Inductor 500 mA 580mOhm Max Axial
Datasheet
Mfr
Vishay Dale
Series
IRF-36
Q @ Freq
70 @ 7.96MHz
Packaging
Bag
Shielding
Unshielded
Tolerance
±10%
Inductance
10 µH
Mounting Type
Through Hole
Package / Case
Axial
Material - Core
Ferrite
Size / Dimension
0.157" Dia x 0.394" L (4.00mm x 10.00mm)
DC Resistance (DCR)
580mOhm Max
Current Rating (Amps)
500 mA
Operating Temperature
-20°C ~ 105°C
Frequency - Self Resonant
45MHz
Inductance Frequency - Test
7.96 MHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Series | IRF-36 |
| Q @ Freq | 70 @ 7.96MHz |
| Packaging | Bag |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 10 µH |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Material - Core | Ferrite |
| Size / Dimension | 0.157" Dia x 0.394" L (4.00mm x 10.00mm) |
| DC Resistance (DCR) | 580mOhm Max |
| Current Rating (Amps) | 500 mA |
| Operating Temperature | -20°C ~ 105°C |
| Frequency - Self Resonant | 45MHz |
| Inductance Frequency - Test | 7.96 MHz |
