Step1: Product

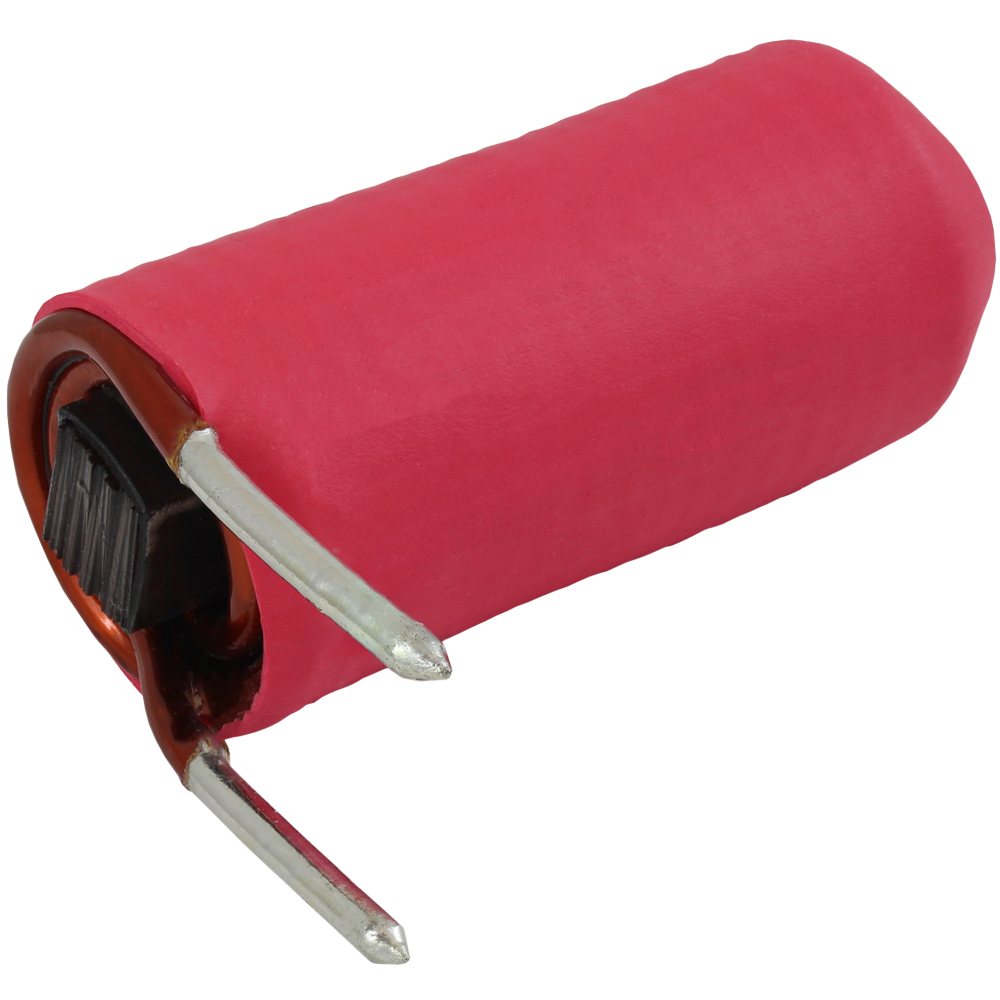

Vishay Dale IHV20BZ200
Image shown is a representation only
Manufacturer
Manufacturer No
IHV20BZ200
Package
Radial, Horizontal Cylinder
Packaging
Bag
Description
FIXED IND 200UH 20A 21 MOHM TH
Detailed Description
200 µH Unshielded Inductor 20 A 21mOhm Max Radial, Horizontal Cylinder
DataSheet
Mfr
Vishay Dale
Series
IHV
Packaging
Bag
Shielding
Unshielded
Tolerance
±10%
Inductance
200 µH
Part Status
Active
Mounting Type
Through Hole
Package / Case
Radial, Horizontal Cylinder
Material - Core
Iron
Size / Dimension
1.450" Dia x 2.450" L (36.83mm x 62.23mm)
DC Resistance (DCR)
21mOhm Max
Current Rating (Amps)
20 A
Operating Temperature
-55°C ~ 125°C
Frequency - Self Resonant
1.2MHz
Inductance Frequency - Test
1 kHz
| Attribute | Value |
|---|---|
| Mfr | Vishay Dale |
| Series | IHV |
| Packaging | Bag |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 200 µH |
| Part Status | Active |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder |
| Material - Core | Iron |
| Size / Dimension | 1.450" Dia x 2.450" L (36.83mm x 62.23mm) |
| DC Resistance (DCR) | 21mOhm Max |
| Current Rating (Amps) | 20 A |
| Operating Temperature | -55°C ~ 125°C |
| Frequency - Self Resonant | 1.2MHz |
| Inductance Frequency - Test | 1 kHz |
