Step1: Product

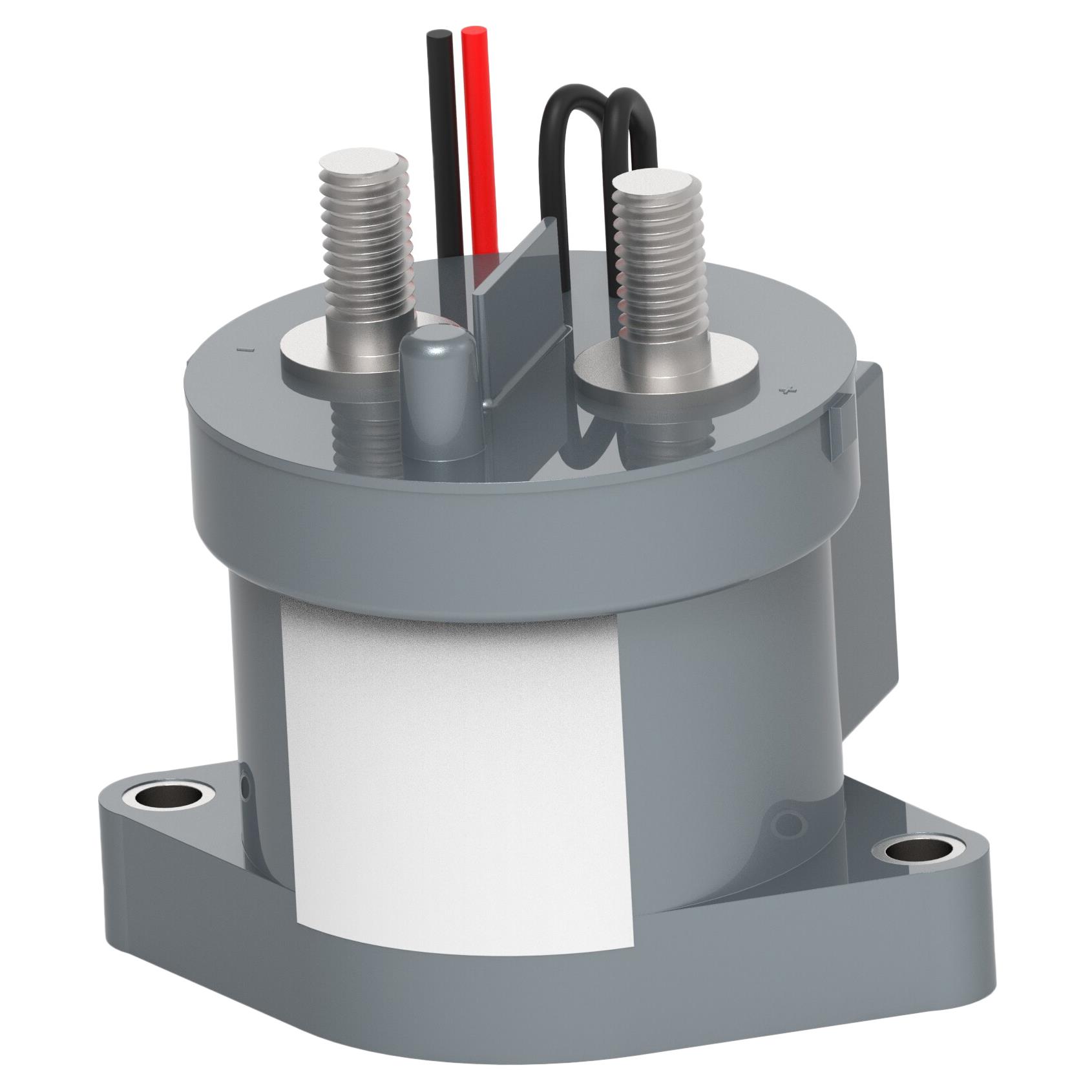

TE Connectivity AMP Connectors IHV200AAANA
Image shown is a representation only
Manufacturer
Manufacturer No
IHV200AAANA
Packaging
Bulk
Description
IHV200AAANA
Detailed Description
Contactor SPST-NO (DM) (1 Form X) 200 A 12 ~ 24VDC Coil Chassis Mount
DataSheet
Series
IHV200
Features
Auxiliary Contacts
Packaging
Bulk
Part Status
Not For New Designs
Coil Voltage
12 ~ 24VDC
Contact Form
SPST-NO (DM) (1 Form X)
Manufacturer
TE Connectivity AMP Connectors
Operate Time
25 ms
Release Time
10 ms
Mounting Type
Chassis Mount
Contact Material
Copper
Switching Voltage
900VDC - Max
Termination Style
Stud, Wire Leads
Base Product Number
2071410
Must Operate Voltage
32 VDC
Must Release Voltage
18 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
200 A
| Attribute | Value |
|---|---|
| Series | IHV200 |
| Features | Auxiliary Contacts |
| Packaging | Bulk |
| Part Status | Not For New Designs |
| Coil Voltage | 12 ~ 24VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Manufacturer | TE Connectivity AMP Connectors |
| Operate Time | 25 ms |
| Release Time | 10 ms |
| Mounting Type | Chassis Mount |
| Contact Material | Copper |
| Switching Voltage | 900VDC - Max |
| Termination Style | Stud, Wire Leads |
| Base Product Number | 2071410 |
| Must Operate Voltage | 32 VDC |
| Must Release Voltage | 18 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 200 A |
