Step1: Product
Tusonix a Subsidiary of CTS Electronic Components 4253-002LF

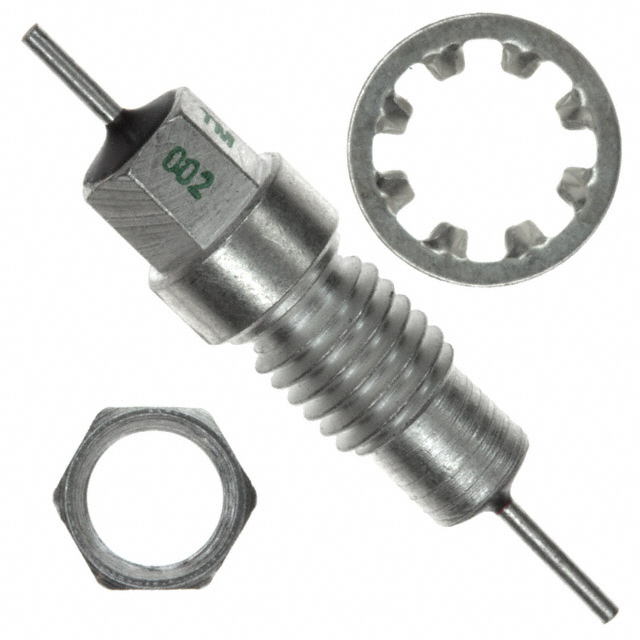

Image shown is a representation only
Manufacturer No
4253-002LF
Package
Axial, Bushing
Packaging
Bulk
Description
FILTER LC(PI) 0.05UF CHASSISSIS
Detailed Description
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 0.05µF 10 A Axial, Bushing
DataSheet
Type
Low Pass
Series
4200
Values
C = 0.05µF
Current
10 A
Packaging
Bulk
Technology
LC (Pi)
Part Status
Active
Applications
Data Lines for Mobile Devices
Filter Order
3rd
Manufacturer
Tusonix a Subsidiary of CTS Electronic Components
Mounting Type
Chassis Mount
ESD Protection
No
Package / Case
Axial, Bushing
Voltage - Rated
70V
Size / Dimension
0.250" Dia x 0.807" L (6.35mm x 20.49mm)
Attenuation Value
75dB @ 100MHz ~ 10GHz
Number of Channels
1
Operating Temperature
-55°C ~ 125°C
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Series | 4200 |
| Values | C = 0.05µF |
| Current | 10 A |
| Packaging | Bulk |
| Technology | LC (Pi) |
| Part Status | Active |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 3rd |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Mounting Type | Chassis Mount |
| ESD Protection | No |
| Package / Case | Axial, Bushing |
| Voltage - Rated | 70V |
| Size / Dimension | 0.250" Dia x 0.807" L (6.35mm x 20.49mm) |
| Attenuation Value | 75dB @ 100MHz ~ 10GHz |
| Number of Channels | 1 |
| Operating Temperature | -55°C ~ 125°C |
