Step1: Product
Tusonix a Subsidiary of CTS Electronic Components 4205-500

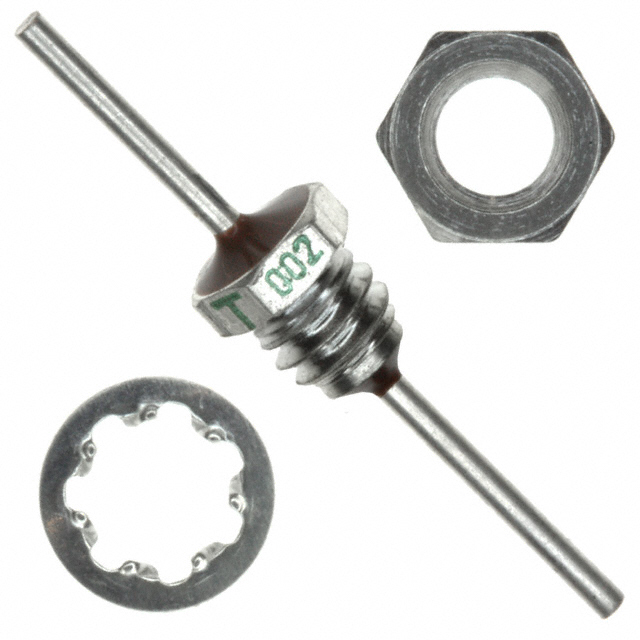

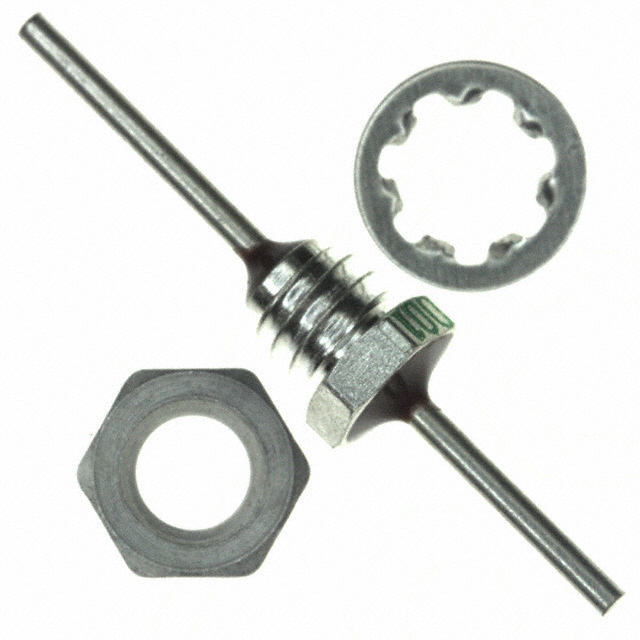

Image shown is a representation only
Manufacturer No
4205-500
Package
Axial, Bushing
Packaging
Bulk
Description
FILTER LC(PI) 1500PF CHASSISSIS
Detailed Description
LC (Pi) EMI Filter 3rd Order 1 Channel C = 1500pF 15 A Axial, Bushing
DataSheet
Series
4205
Values
C = 1500pF
Current
15 A
Packaging
Bulk
Technology
LC (Pi)
Part Status
Active
Filter Order
3rd
Manufacturer
Tusonix a Subsidiary of CTS Electronic Components
Mounting Type
Chassis Mount
ESD Protection
No
Package / Case
Axial, Bushing
Voltage - Rated
125V
Size / Dimension
0.187" Dia x 0.200" L (4.75mm x 5.08mm)
Attenuation Value
3dB @ 4MHz, 5dB @ 10MHz, 20dB @ 100MHz, 40dB @ 500MHz, 50dB @ 18GHz
Number of Channels
1
| Attribute | Value |
|---|---|
| Series | 4205 |
| Values | C = 1500pF |
| Current | 15 A |
| Packaging | Bulk |
| Technology | LC (Pi) |
| Part Status | Active |
| Filter Order | 3rd |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Mounting Type | Chassis Mount |
| ESD Protection | No |
| Package / Case | Axial, Bushing |
| Voltage - Rated | 125V |
| Size / Dimension | 0.187" Dia x 0.200" L (4.75mm x 5.08mm) |
| Attenuation Value | 3dB @ 4MHz, 5dB @ 10MHz, 20dB @ 100MHz, 40dB @ 500MHz, 50dB @ 18GHz |
| Number of Channels | 1 |
