Step1: Product
Tusonix a Subsidiary of CTS Electronic Components 4206-001LF

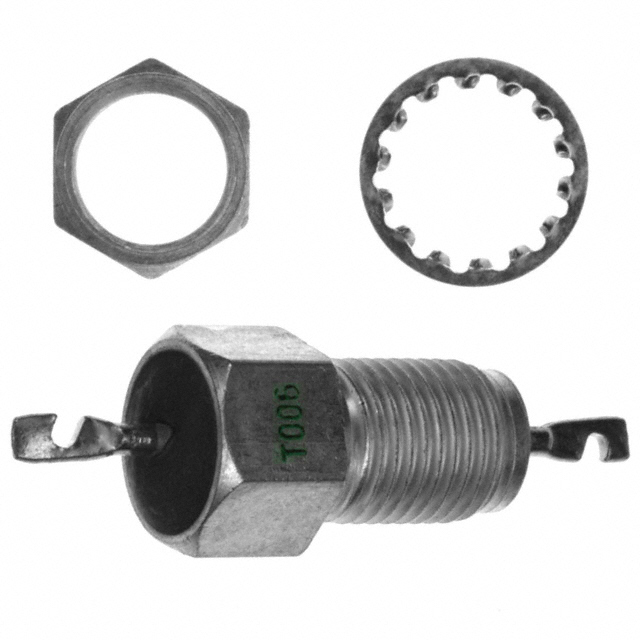

Image shown is a representation only
Manufacturer No
4206-001LF
Package
Axial, Bushing - 2 Notched Leads
Packaging
Bulk
Description
FILTER LC(PI) 3000PF CHASSISSIS
Detailed Description
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 3000pF 25 A Axial, Bushing - 2 Notched Leads
DataSheet
Type
Low Pass
Series
4200
Values
C = 3000pF
Current
25 A
Packaging
Bulk
Technology
LC (Pi)
Part Status
Active
Applications
Data Lines for Mobile Devices
Filter Order
3rd
Manufacturer
Tusonix a Subsidiary of CTS Electronic Components
Mounting Type
Chassis Mount
ESD Protection
No
Package / Case
Axial, Bushing - 2 Notched Leads
Voltage - Rated
500V
Size / Dimension
0.375" Dia x 0.687" L (9.52mm x 17.44mm)
Attenuation Value
55dB @ 100MHz
Number of Channels
1
Operating Temperature
-55°C ~ 125°C
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Series | 4200 |
| Values | C = 3000pF |
| Current | 25 A |
| Packaging | Bulk |
| Technology | LC (Pi) |
| Part Status | Active |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 3rd |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Mounting Type | Chassis Mount |
| ESD Protection | No |
| Package / Case | Axial, Bushing - 2 Notched Leads |
| Voltage - Rated | 500V |
| Size / Dimension | 0.375" Dia x 0.687" L (9.52mm x 17.44mm) |
| Attenuation Value | 55dB @ 100MHz |
| Number of Channels | 1 |
| Operating Temperature | -55°C ~ 125°C |
