TT Electronics/BI Magnetics HM78D-755R33MLFTR

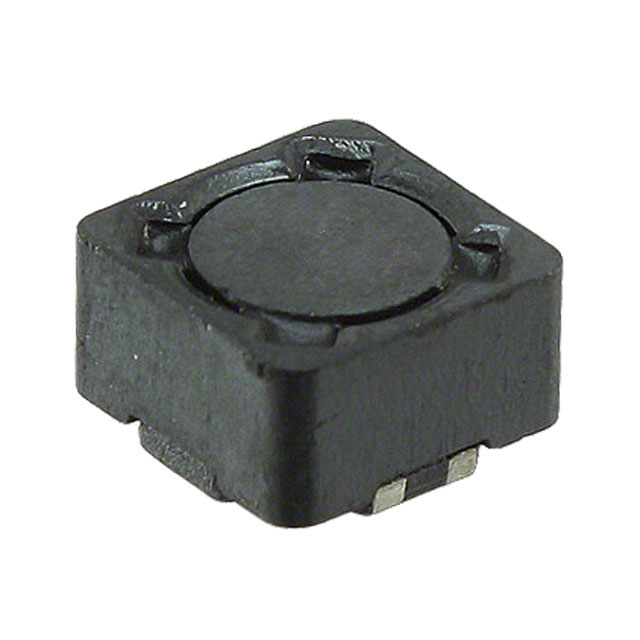

Image shown is a representation only
Manufacturer
Manufacturer No
HM78D-755R33MLFTR
Package
Nonstandard
Packaging
Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 330NH SMD
Detailed Description
Shielded 2 Coil Inductor Array 1.176 µH Inductance - Connected in Series 330 nH Inductance - Connected in Parallel 7.4mOhm DC Resistance (DCR) - Parallel 6.2 A Nonstandard
DataSheet
Height
0.189" (4.80mm)
Series
HM78D
Packaging
Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Part Status
Discontinued at DigiKey
Manufacturer
TT Electronics/BI Magnetics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.303" L x 0.303" W (7.70mm x 7.70mm)
Base Product Number
HM78D
Operating Temperature
-40°C ~ 125°C
Current Rating - Series
3.1 A
Current Rating - Parallel
6.2 A
Current Saturation - Series
9.18 A
DC Resistance (DCR) - Series
29.5mOhm
Current Saturation - Parallel
18.4 A
DC Resistance (DCR) - Parallel
7.4mOhm
Inductance - Connected In Series
1.176 µH
Inductance - Connected In Parallel
330 nH
| Attribute | Value |
|---|---|
| Height | 0.189" (4.80mm) |
| Series | HM78D |
| Packaging | Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Discontinued at DigiKey |
| Manufacturer | TT Electronics/BI Magnetics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.303" L x 0.303" W (7.70mm x 7.70mm) |
| Base Product Number | HM78D |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 3.1 A |
| Current Rating - Parallel | 6.2 A |
| Current Saturation - Series | 9.18 A |
| DC Resistance (DCR) - Series | 29.5mOhm |
| Current Saturation - Parallel | 18.4 A |
| DC Resistance (DCR) - Parallel | 7.4mOhm |
| Inductance - Connected In Series | 1.176 µH |
| Inductance - Connected In Parallel | 330 nH |
