TT Electronics/BI Magnetics HM78D-128680MLFTR

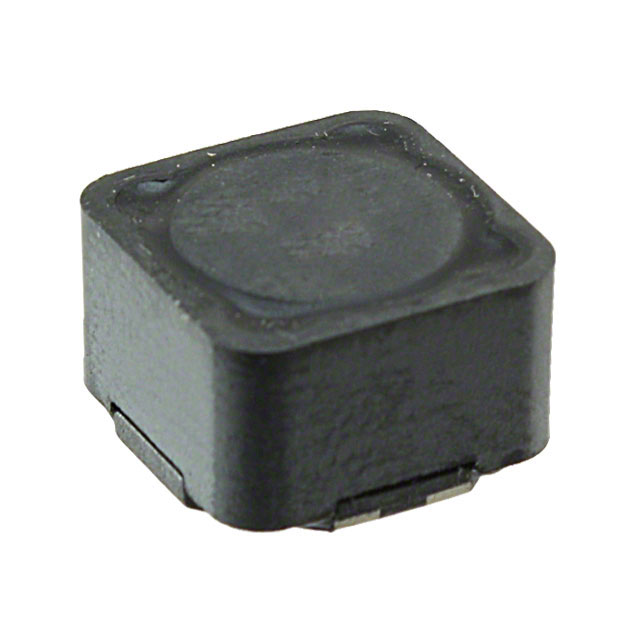

Image shown is a representation only
Manufacturer
Manufacturer No
HM78D-128680MLFTR
Package
Nonstandard
Packaging
Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 68UH SMD
Detailed Description
Shielded 2 Coil Inductor Array 272 µH Inductance - Connected in Series 68 µH Inductance - Connected in Parallel 105mOhm DC Resistance (DCR) - Parallel 2.6 A Nonstandard
DataSheet
Height
0.317" (8.05mm)
Series
HM78D
Packaging
Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Part Status
Discontinued at DigiKey
Manufacturer
TT Electronics/BI Magnetics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.492" L x 0.492" W (12.50mm x 12.50mm)
Base Product Number
HM78D
Operating Temperature
-40°C ~ 125°C
Current Rating - Series
1.3 A
Current Rating - Parallel
2.6 A
Current Saturation - Series
2.1 A
DC Resistance (DCR) - Series
420mOhm
Current Saturation - Parallel
4.1 A
DC Resistance (DCR) - Parallel
105mOhm
Inductance - Connected In Series
272 µH
Inductance - Connected In Parallel
68 µH
| Attribute | Value |
|---|---|
| Height | 0.317" (8.05mm) |
| Series | HM78D |
| Packaging | Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Discontinued at DigiKey |
| Manufacturer | TT Electronics/BI Magnetics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Base Product Number | HM78D |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 1.3 A |
| Current Rating - Parallel | 2.6 A |
| Current Saturation - Series | 2.1 A |
| DC Resistance (DCR) - Series | 420mOhm |
| Current Saturation - Parallel | 4.1 A |
| DC Resistance (DCR) - Parallel | 105mOhm |
| Inductance - Connected In Series | 272 µH |
| Inductance - Connected In Parallel | 68 µH |
