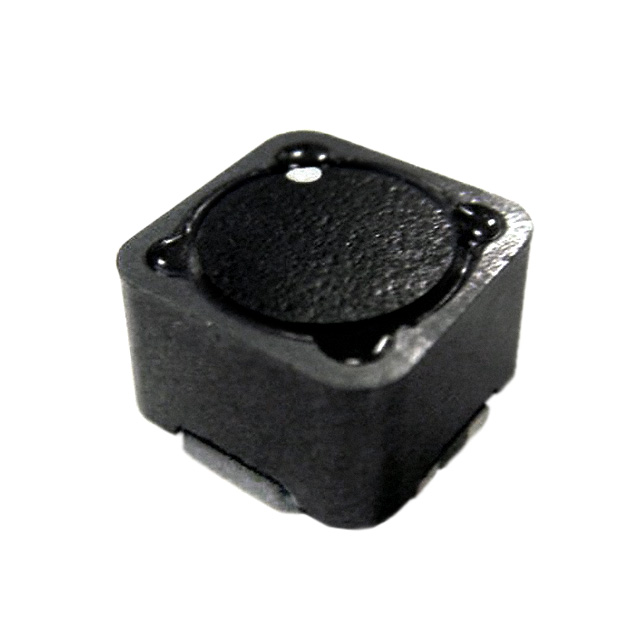

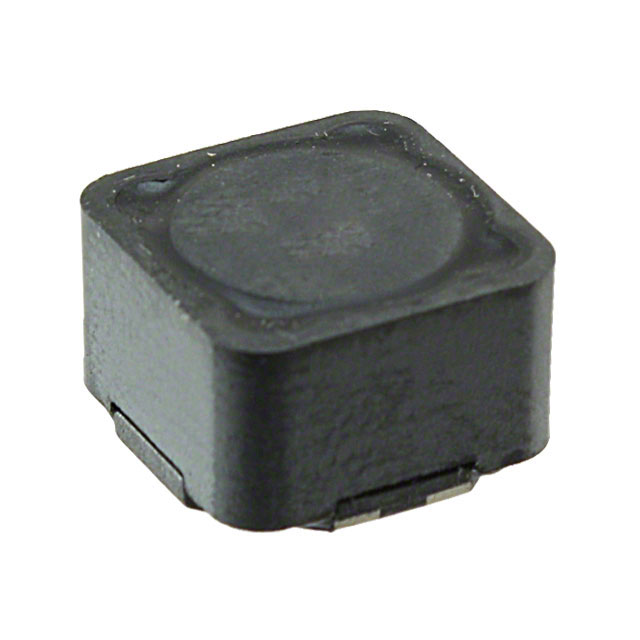

TT Electronics/BI Magnetics HM78D-1210560MLFTR
Image shown is a representation only
Manufacturer
Manufacturer No
HM78D-1210560MLFTR
Package
Nonstandard
Packaging
Cut Tape (CT)
Description
INDUCT ARRAY 2 COIL 56UH SMD
Detailed Description
Shielded 2 Coil Inductor Array 224 µH Inductance - Connected in Series 56 µH Inductance - Connected in Parallel 81mOhm Max DC Resistance (DCR) - Parallel 850 mA Nonstandard
DataSheet
Height
0.413" (10.50mm)
Series
HM78D
Packaging
Cut Tape (CT)
Shielding
Shielded
Tolerance
±20%
Part Status
Discontinued at DigiKey
Manufacturer
TT Electronics/BI Magnetics
Mounting Type
Surface Mount
Package / Case
Nonstandard
Number of Coils
2
Size / Dimension
0.492" L x 0.492" W (12.50mm x 12.50mm)
Base Product Number
HM78D
Operating Temperature
-40°C ~ 125°C
Current Rating - Series
425 mA
Current Rating - Parallel
850 mA
Current Saturation - Series
2.45 A
DC Resistance (DCR) - Series
324mOhm Max
Current Saturation - Parallel
4.9 A
DC Resistance (DCR) - Parallel
81mOhm Max
Inductance - Connected In Series
224 µH
Inductance - Connected In Parallel
56 µH
| Attribute | Value |
|---|---|
| Height | 0.413" (10.50mm) |
| Series | HM78D |
| Packaging | Cut Tape (CT) |
| Shielding | Shielded |
| Tolerance | ±20% |
| Part Status | Discontinued at DigiKey |
| Manufacturer | TT Electronics/BI Magnetics |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Number of Coils | 2 |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Base Product Number | HM78D |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating - Series | 425 mA |
| Current Rating - Parallel | 850 mA |
| Current Saturation - Series | 2.45 A |
| DC Resistance (DCR) - Series | 324mOhm Max |
| Current Saturation - Parallel | 4.9 A |
| DC Resistance (DCR) - Parallel | 81mOhm Max |
| Inductance - Connected In Series | 224 µH |
| Inductance - Connected In Parallel | 56 µH |
