Texas Instruments UCC27289DRCR

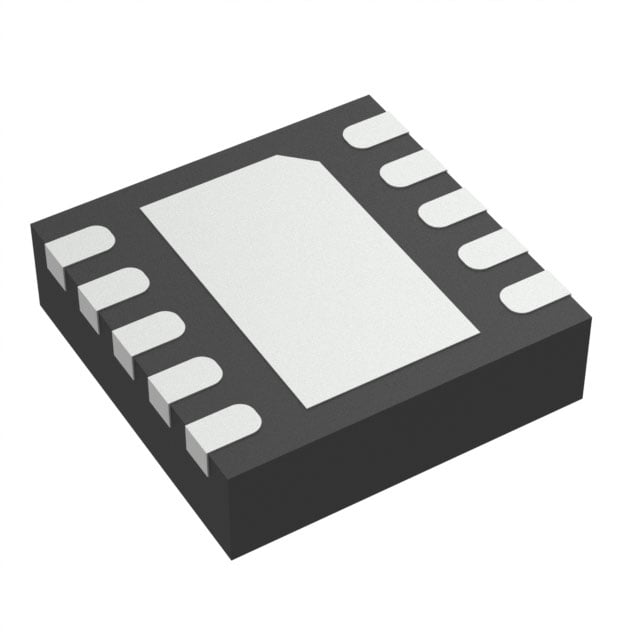

Image shown is a representation only
Manufacturer
Manufacturer No
UCC27289DRCR
Quantity
1002
Availability
In Stock
Package
10-VFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
IC HALF BRIDGE DRIVER 10VSON
Detailed Description
Half Bridge Driver General Purpose NMOS 10-VSON (3x3)
DataSheet
Features
Bootstrap Circuit
Interface
Analog, Logic, PWM
Load Type
Inductive, Capacitive, Resistive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
NMOS
Part Status
Active
Applications
General Purpose
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Package / Case
10-VFDFN Exposed Pad
Voltage - Load
8V ~ 16V
Fault Protection
Current Limiting, Over Voltage, Short Circuit, UVLO
Voltage - Supply
8V ~ 16V
Output Configuration
Half Bridge
Current - Peak Output
3A
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
10-VSON (3x3)
| Attribute | Value |
|---|---|
| Features | Bootstrap Circuit |
| Interface | Analog, Logic, PWM |
| Load Type | Inductive, Capacitive, Resistive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | NMOS |
| Part Status | Active |
| Applications | General Purpose |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Voltage - Load | 8V ~ 16V |
| Fault Protection | Current Limiting, Over Voltage, Short Circuit, UVLO |
| Voltage - Supply | 8V ~ 16V |
| Output Configuration | Half Bridge |
| Current - Peak Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 10-VSON (3x3) |
