Texas Instruments CSD96371Q5M

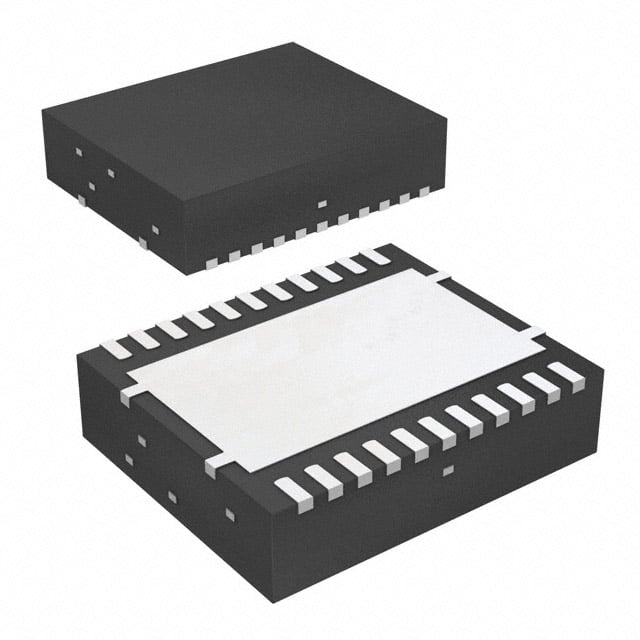

Image shown is a representation only
Manufacturer
Manufacturer No
CSD96371Q5M
Package
22-PowerLFDFN
Packaging
Tape & Reel (TR)
Description
IC HALF BRIDGE DRIVER 50A 22LSON
Detailed Description
Half Bridge Driver Synchronous Buck Converters Power MOSFET 22-LSON-CLIP (6x5)
DataSheet
Series
NexFET™
Features
Bootstrap Circuit
Interface
PWM
Load Type
Inductive
Packaging
Tape & Reel (TR)
Technology
Power MOSFET
Part Status
Active
Applications
Synchronous Buck Converters
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Package / Case
22-PowerLFDFN
Voltage - Load
3.3V ~ 13.2V
Fault Protection
Shoot-Through, UVLO
Voltage - Supply
4.5V ~ 5.5V
Base Product Number
CSD96371
Output Configuration
Half Bridge
Current - Peak Output
75A
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
22-LSON-CLIP (6x5)
Current - Output / Channel
50A
| Attribute | Value |
|---|---|
| Series | NexFET™ |
| Features | Bootstrap Circuit |
| Interface | PWM |
| Load Type | Inductive |
| Packaging | Tape & Reel (TR) |
| Technology | Power MOSFET |
| Part Status | Active |
| Applications | Synchronous Buck Converters |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Package / Case | 22-PowerLFDFN |
| Voltage - Load | 3.3V ~ 13.2V |
| Fault Protection | Shoot-Through, UVLO |
| Voltage - Supply | 4.5V ~ 5.5V |
| Base Product Number | CSD96371 |
| Output Configuration | Half Bridge |
| Current - Peak Output | 75A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | 22-LSON-CLIP (6x5) |
| Current - Output / Channel | 50A |
