Texas Instruments CSD95420RCB

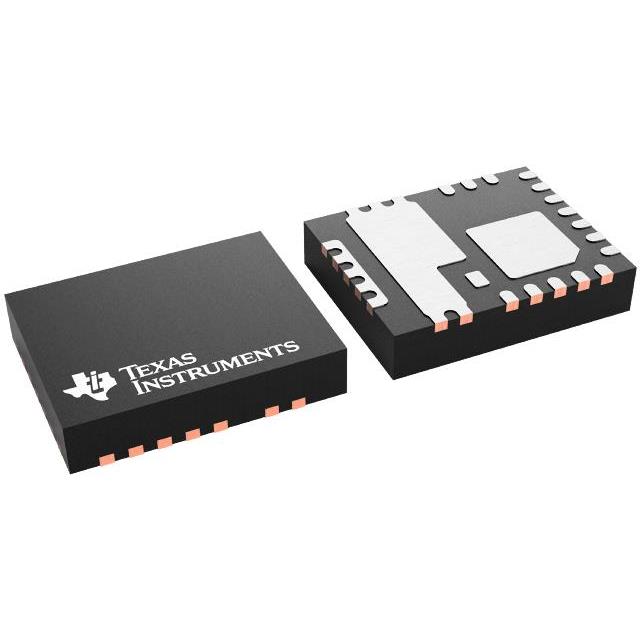

Image shown is a representation only
Manufacturer
Manufacturer No
CSD95420RCB
Quantity
50
Availability
In Stock
Package
27-PowerTFQFN
Packaging
Bulk
Description
PROTOTYPE
Detailed Description
Half Bridge Driver Synchronous Buck Converters Power MOSFET 27-QFN (4x5)
DataSheet
Series
NexFET™
Features
Bootstrap Circuit
Interface
PWM
Load Type
Inductive, Capacitive
Packaging
Bulk
Technology
Power MOSFET
Part Status
Active
Applications
Synchronous Buck Converters
Manufacturer
Texas Instruments
Mounting Type
Surface Mount
Package / Case
27-PowerTFQFN
Voltage - Load
4.5V ~ 14.5V
Fault Protection
Shoot-Through
Voltage - Supply
4.5V ~ 5.5V
Output Configuration
Half Bridge
Current - Peak Output
50A
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
27-QFN (4x5)
Current - Output / Channel
25A
| Attribute | Value |
|---|---|
| Series | NexFET™ |
| Features | Bootstrap Circuit |
| Interface | PWM |
| Load Type | Inductive, Capacitive |
| Packaging | Bulk |
| Technology | Power MOSFET |
| Part Status | Active |
| Applications | Synchronous Buck Converters |
| Manufacturer | Texas Instruments |
| Mounting Type | Surface Mount |
| Package / Case | 27-PowerTFQFN |
| Voltage - Load | 4.5V ~ 14.5V |
| Fault Protection | Shoot-Through |
| Voltage - Supply | 4.5V ~ 5.5V |
| Output Configuration | Half Bridge |
| Current - Peak Output | 50A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 27-QFN (4x5) |
| Current - Output / Channel | 25A |
